Single Phase/Three Phase High Quality Hybrid Inverter 3kw 5kva 6kva 5kw 48v Inverter

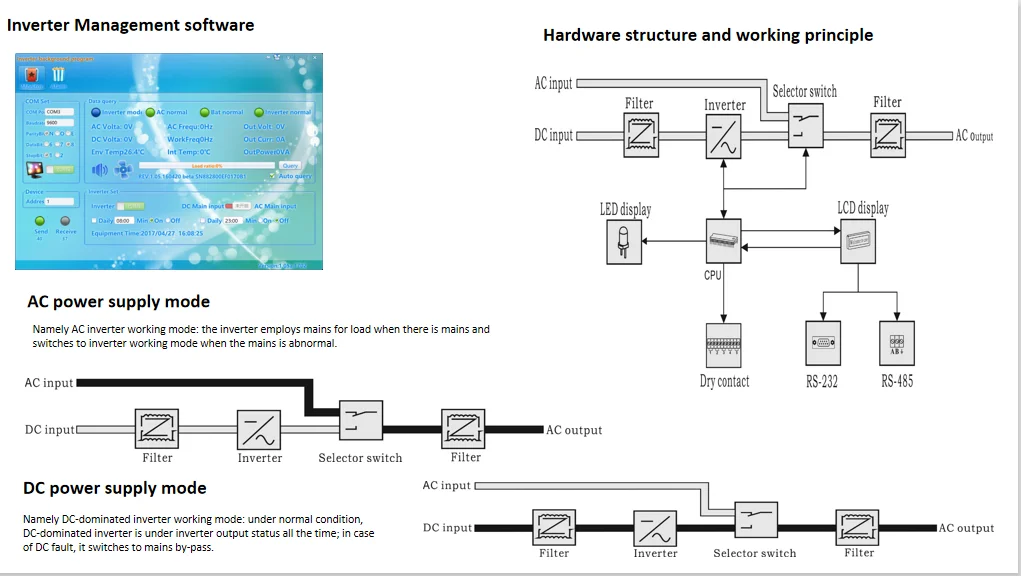

The inverter of this series employs advanced SPWM and CPU control technology to realize precise control, isolated input and output, output soft start, safety and high efficiency, good reliability and strong impact resistance to inductive load. Not only with small volume, light weight, beautiful appearance, convenient installation and maintenance, simple operation, low noise, low backward noise and no pollution, but also with the function of real-time data collection and multi-path remote communication
Technical characteristics and parameters:
| Index(VA) |
BWT12/48-5/6KVAR |
||
| DC INPUT |
Rated Input Voltage(Vdc) |
48V |
|
|
|
Rated Input Current (A) |
4.5A |
|
|
|
DC Input Range (Vac) |
180-275V (208-260V recovery point) |
|
|
|
Reflected Noise Current. |
≤10% |
|
| AC Bypass Input |
Bypass Voltage Range (Vac) |
270V-170V(±10V) |
|
|
|
Rated Input Current(A) |
4.5 |
|
| AC Output |
Capacity(VA) |
5KVA |
|
|
|
Rated output Capacity(W) |
5000W/6000w |
|
|
|
Output Voltage and Frequency |
220Vac 50Hz/60Hz |
|
|
|
Output Current(A) |
3.6 |
|
|
|
Voltage Accuracy(V) |
220±1.5% |
|
|
|
Frequency Accuracy(Hz) |
50±0.1% or 60±0.1% |
|
|
|
Waveform |
Pure Sine Wave |
|
|
|
THD |
≤3%(line load ) |
|
|
|
Dynamic Response Time |
5%((load 0←→100%) |
|
|
|
Power Factor(PF) |
0.8 |
|
|
|
Overload Capability |
100%-120% 60s |
121%-150% 10s |
|
|
Inverter efficiency(80% line load) |
≥85% |
|
|
|
Inverter ←→ Bypass(ms) |
≤8ms |
|
| working environment |
Dielectric Strength(Input & Output) |
1500Vac-10mA,1minutes |
|
|
|
Noise(1m) |
≤55dB |
|
|
|
Ambient Temp. |
-20℃~+50℃ |
|
|
|
Humidity |
0~90%,No condensation |
|
|
|
Altitude(m) |
≤2000 |
|

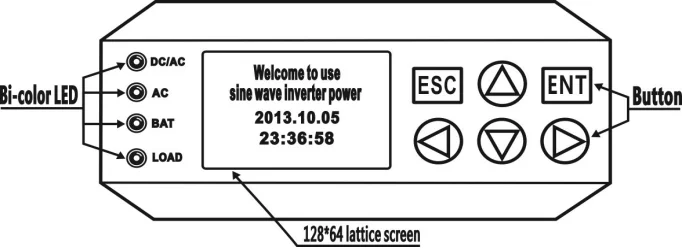

| Indicate |
LCD Display |
Input/output Voltage,Frequency,Output Current,Temp.,Capacity Rate .etc |
|
|
|
Inverter Status |
Off Grid Status,Inverter Status,Batter Under&Over Vol,Output Over load |
|
l This product supports built-in TCP/IP communication to realize remote network monitoring and management of the inverter power supply.(Optional)
l This product supports built-in SNMP communication to realize the interconnecting function of the inverter power supply and attain the objective of network monitoring and management.(Optional)
