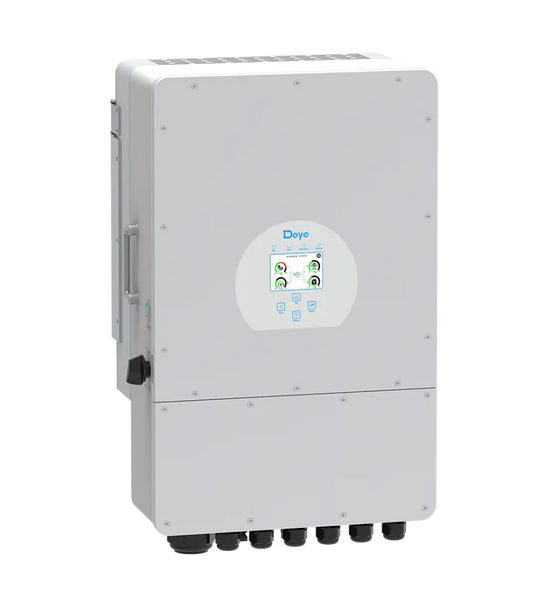

SUNFUTURE Deye SUN-12K-SG04LP3-EU Easy Installation 3 Phase 8kw 10kw 12kw Hybrid Solar Inverter
Save -55%
Rs. 752,921.83
Rs. 1,687,231.08
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Sunfuture Deye Factory Hybrid 380v Home Three Phase 10kw 12Kw Mpp Hybrid Solar Pv Inverter With RS485
Product Description
Feature
1. 230V/400V Three phase Pure sine wave inverter.
2. Self-consumption and feed-in to the grid.
3. Auto restart while AC is recovering.
4. Programmable supply priority for battery or grid.
4. Programmable supply priority for battery or grid.
5. Configurable battery charging current/voltage based on applications by LCD setting.
6. Configurable AC/Solar/Generator Charger priority by LCD setting.
7. Compatible with mains voltage or generator power.
8. Overload/over temperature/short circuit protection.
9. Smart battery charger design for optimized battery performance
10. With limit function, prevent excess power overflow to the grid.
11. Supporting WIFI monitoring and build-in 2 strings for 1 MPP tracker, 1 string for 1 MPP tracker.
12.Smart settable three stages MPPT charging for optimized battery performance.
13. Time of use function.
14. Smart Load Function.
LCD Display Icons
PV power and Load power always keep positive.
Grid power negative means sell to grid, positive means get from grid.
Battery power negative means charge, positive means discharge.
Specification
|
Model
|
SUN-12K -SG04LP3-EU
|
|
|
Battery Input Data
|
||
|
Battery Type
|
Lead-acid or Li-lon
|
|
|
Battery Voltage Range (V)
|
40~60
|
|
|
Max. Charging Current (A)
|
240
|
|
|
Max. Discharging Current (A)
|
240
|
|
|
Number of battery input
|
Yes
|
|
|
Charging Curve
|
3 Stages / Equalization
|
|
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
PV String Input Data
|
||
|
Max. DC Input Power (W)
|
15600
|
|
|
Rated PV Input Voltage (V)
|
550 (160~800)
|
|
|
Start-up Voltage (V)
|
160
|
|
|
MPPT Voltage Range (V)
|
200-650
|
|
|
Full Load DC Voltage Range (V)
|
300-650
|
|
|
PV Input Current (A)
|
26+13
|
|
|
No.of MPP Trackers
|
2
|
|
|
No.of Strings per MPP Tracker
|
2+1
|
|
|
AC Output Data
|
||
|
Rated AC Output and UPS Power (W)
|
12000
|
|
|
Max. AC Output Power (W)
|
13200
|
|
|
AC Output Rated Current (A)
|
18.2/17.4
|
|
|
Max. AC Current (A)
|
27.3/26.1
|
|
|
Max. Continuous AC Passthrough (A)
|
45
|
|
|
Grid Type
|
Three Phase
|
|
|
Efficiency
|
||
|
Max. Efficiency
|
97.60%
|
|
|
Euro Efficiency
|
97.00%
|
|
|
Mppt Efficiency
|
99.90%
|
|
|
General Data
|
||
|
Warranty
|
5 years
|
|
|
Cooling
|
Smart cooling
|
|
|
Noise (dB)
|
<45dB
|
|
|
Communication with BMS
|
RS485; CAN
|
|
|
Weight (kg)
|
33.6
|
|
|
Size (mm)
|
422W x 699.3H x279D
|
|
|
Protection Degree
|
IP65
|
|
|
Installation Style
|
Wall-mounted
|
|
