TL5R PRP Refrigerated Hematocrit Centrifuge Separator Blood Bag Machine for Hospitals and Clinical Use
Share

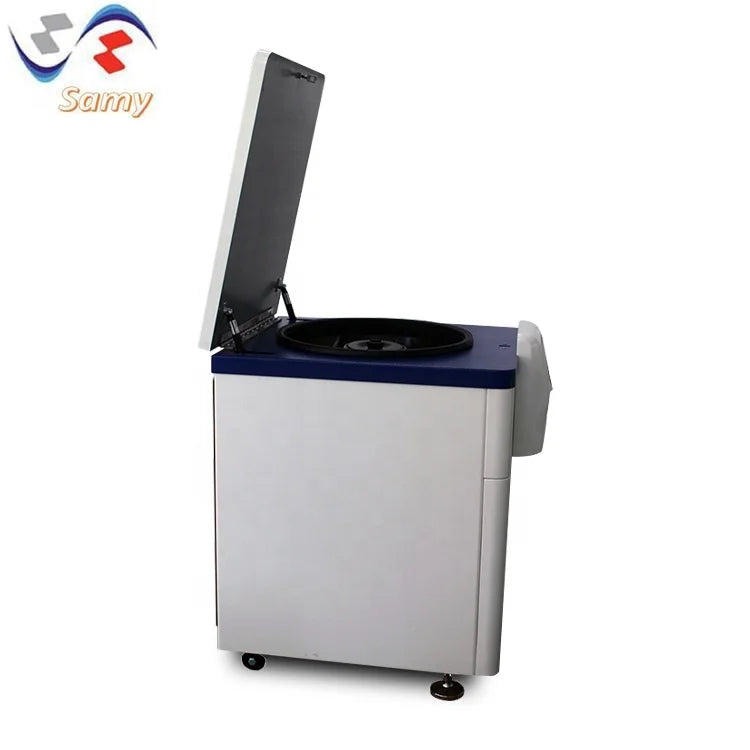

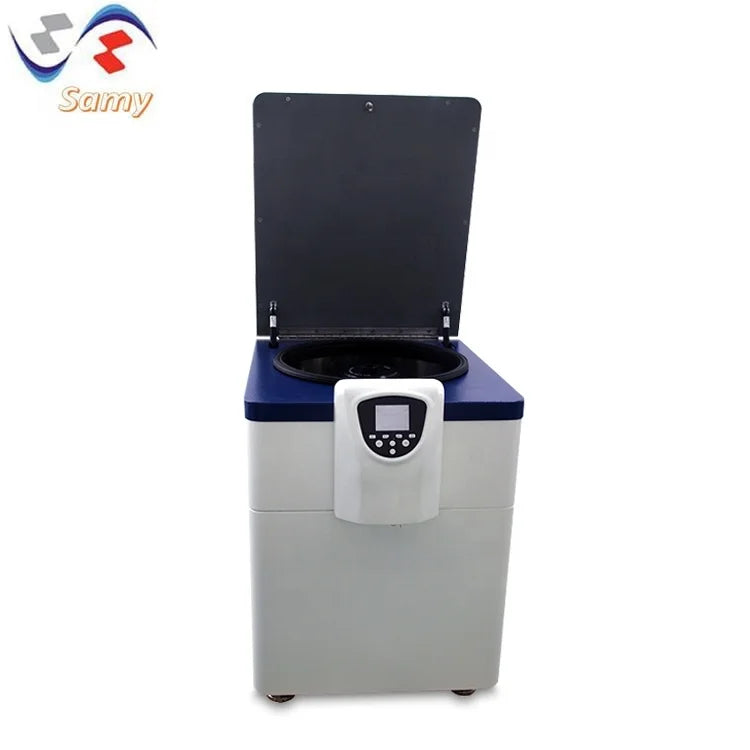

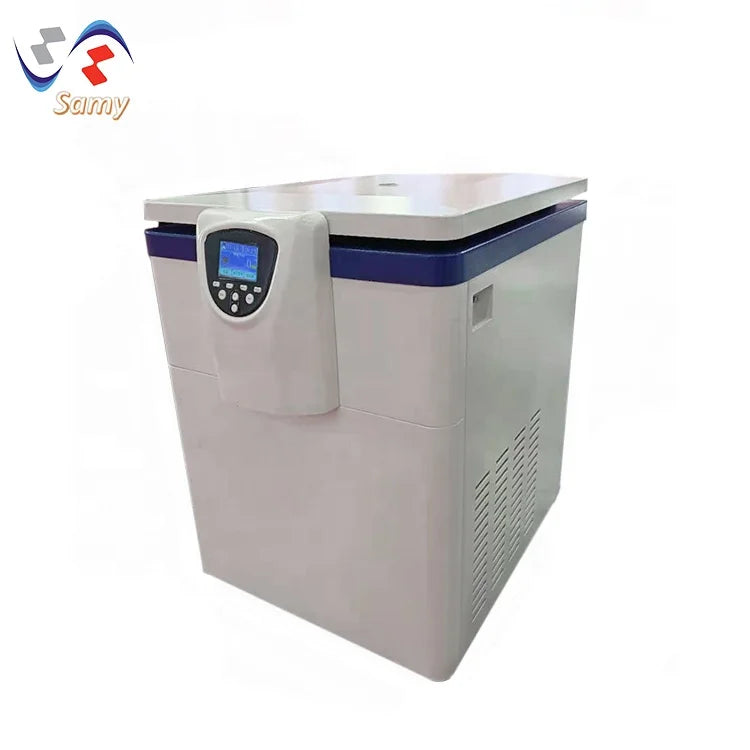

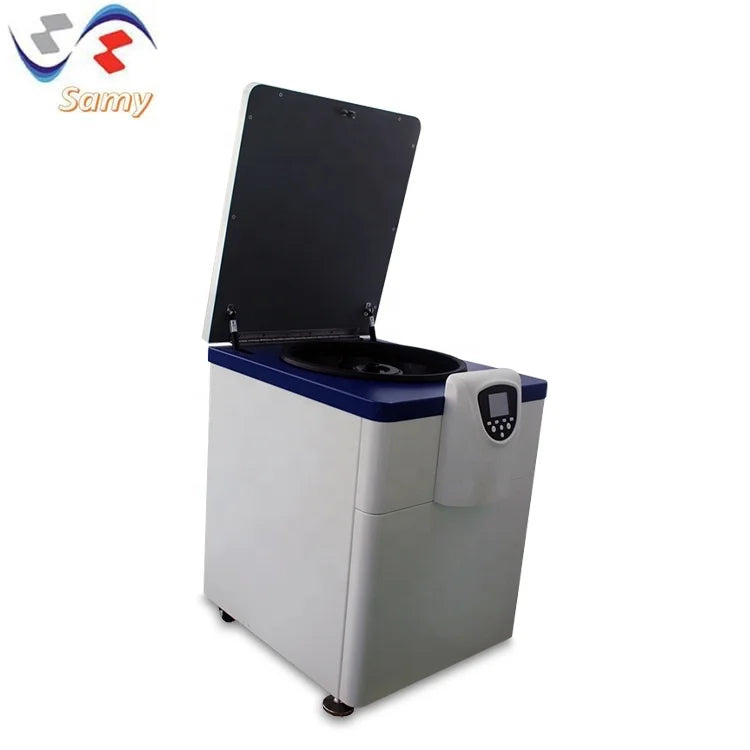

TL5R prp refrigerated centrifuge separator blood bags machine for hospital
LCD Display High Speed Refrigerated medical centrifuge maximum capacity 4x 750ml with CE certification
TL5R centrifuge is a large capacity refrigerated centrifuge up to 4*750ml,is widely applied in biochemistry product,science and research,teaching,food safety,health and medicine,blood station,hospital,molecular biotechnology,environmental protection.
TL5R prp refrigerated centrifuge separator blood bags machine for hospital
LCD Display High Speed Refrigerated medical centrifuge maximum capacity 4x 750ml with CE certification
|
Model
|
TL5R prp refrigerated centrifuge separator blood bags machine for hospital
|
|
Max Capacity
|
Swing rotor 4×750ml
|
|
Max Speed(r/min)
|
5500
|
|
Max RCF(×g)
|
4800
|
|
Speed precision
|
±50r/min
|
|
Refrigeration system
|
Import fluoride-free compressor and control valve(R404a)
|
|
Operation programe
|
20
|
|
Temp.control range
|
-20℃~+40℃
|
|
Temp.precision
|
±1℃
|
|
Control and drive systerm
|
Frequency motor,micro control,direct driver
|
|
Timer range
|
0-99h59min
|
|
Total power
|
2.0Kw
|
|
Noise
|
<65dB(A)
|
|
Dimension(L×W×H)
|
710×560×770mm
|
|
weight
|
150kg
|
Features:
§ Use AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.
§ Controlled by an SCM of Microchip's dsPIC30F Series and driven by a special driver module of FAIRCHILD's FSBB30CH Series to ensure the circuit's reliability.
§ With TFT true-color LCD wide-screen touch monitor,micro-computer control and simultaneous indication of both the set parameters and operation ones.

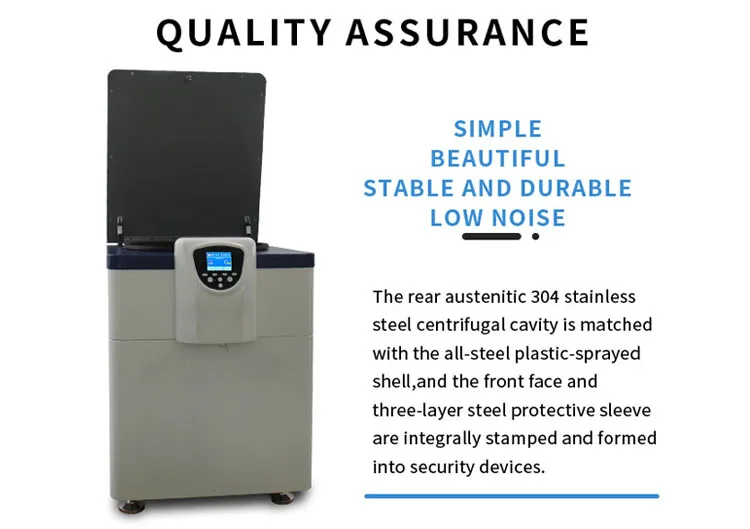

§ The design of the whole machine is in line with the ergonomics.
§ With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly.
§ With a dedicated key indicating the centrifugal force which has the inching function for momentary centrifugation.
§ Able to provide 20 kinds of operating modes for the user to programme and use freely.
§ 10 levels for speed-up /speed -down control.
§ Maximum rotation speed:8000r/min Maximum capacity:4x750ml.

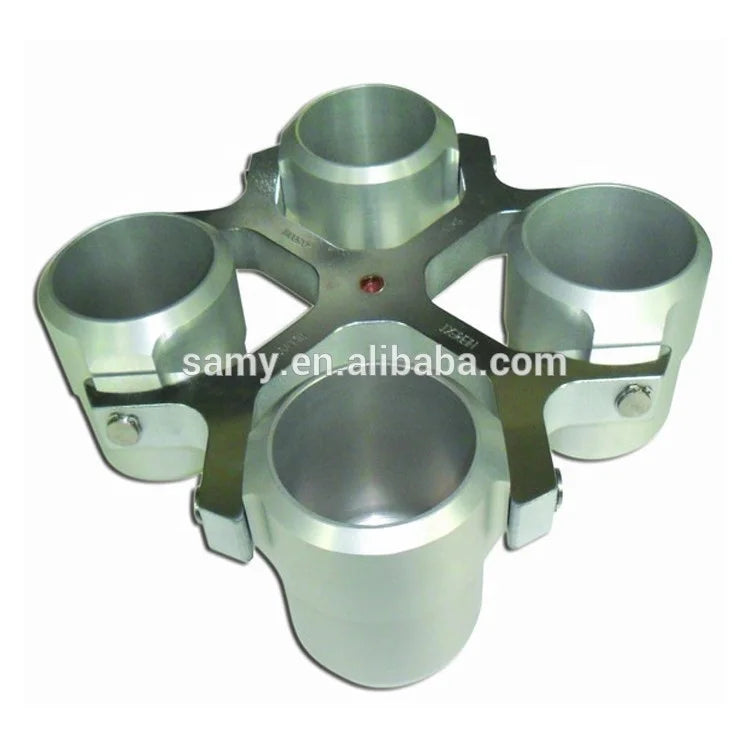

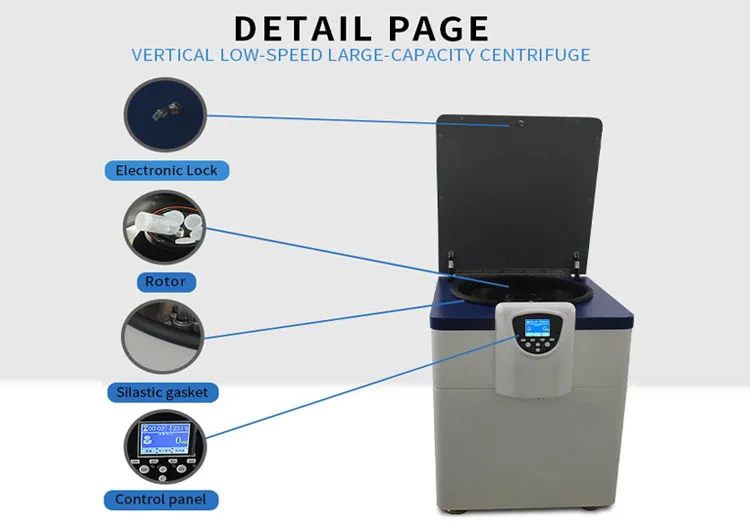

Centrifuge Rotor

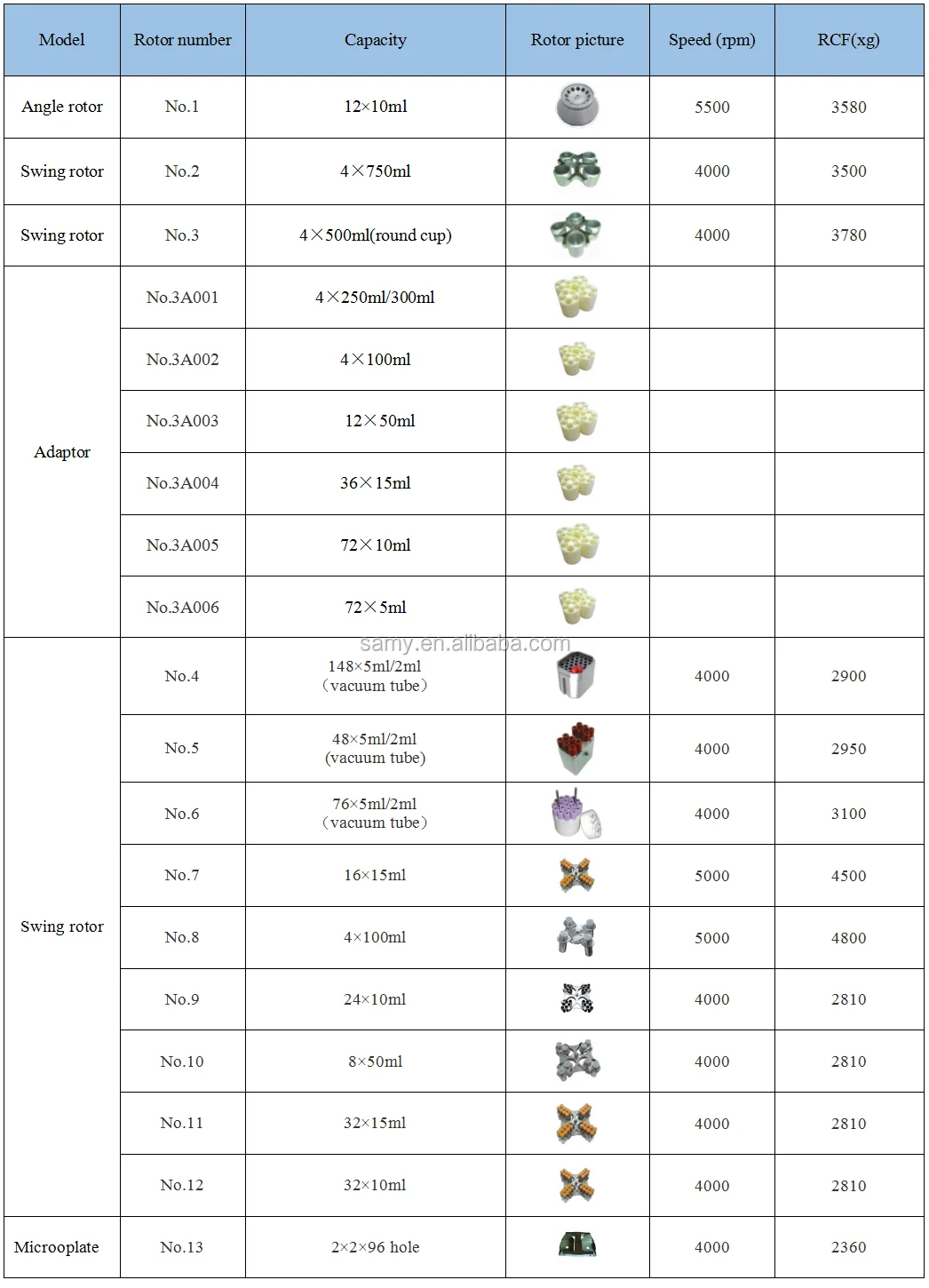

Each set of centrifuge could be equiped with different rotor, TL5R price of decanter prp centrifuge portable micro hematocrit centrifuge could be equiped with 12x10ml Angle rotor, 4×750ml, 4×500ml(round cup), 148×5ml/2ml(vacuum tube), 48×5ml/2ml (vacuum tube), 76×5ml/2ml(vacuum tube) , 16×15ml, 4×100ml ,24×10ml , 8×50ml, 32×15ml, 32×10ml, Swing rotor and 2x2x96 hole Microplate rotor.
Other Rotors from our centrifuge factory :

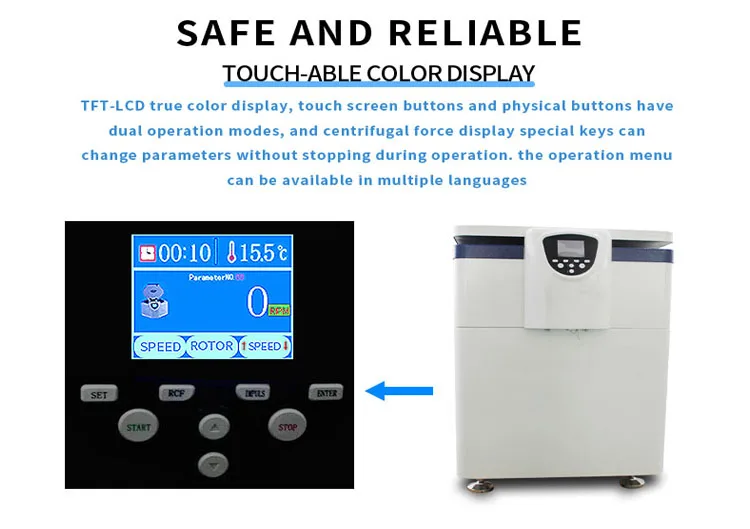

LCD Touch-able 4.7 inch display screen
Our LCD touch-able display screen is the only one factory in China has this type function.
All the specification and data shows on the display,can be use finger to select the request function directly.
Another,the above key button has the same function,it means you can not only use LCD control the requirement but also can be use key button for selection.
