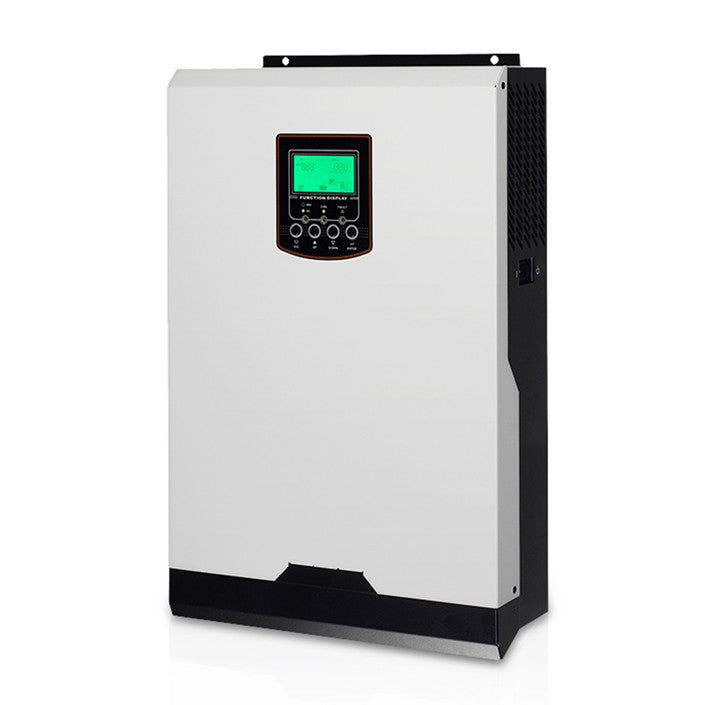

VM Series 3KW Hybrid Off Grid Solar Inverter Mppt 3kw on grid off grid hybrid inverter
Save -56%
Rs. 42,144.12
Rs. 96,329.41
HURRY ! ONLY
19497 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Technical Specification
|
Model
|
VM II PLUS 3.5KW-24V
|
||||
|
Rated Power
|
3500VA/3500W
|
||||
|
Input
|
|||||
|
Voltage
|
230VAC
|
||||
|
Voltage Range
|
170-280VAC for Personal Computer; 90-280VAC for Home Appliances
|
||||
|
Frenquncy Range
|
60/50Hz (Auto sensing)
|
||||
|
OutPut
|
|||||
|
AC Voltage Regulation (Bat Mode)
|
230VAC ± 5%
|
||||
|
Surge Power
|
6000VA
|
||||
|
Transfer Time
|
10ms for Personal Computer; 20ms for Home Appliances
|
||||
|
Waveform
|
Pure Sine Wave
|
||||
|
Battery
|
|||||
|
Battery voltage
|
24VDC
|
||||
|
Floating Charging Voltage
|
27VDC
|
||||
|
Overcharge Protection
|
33VDC
|
||||
|
Solar Charger & AC Charger
|
|||||
|
Solar Charge Type
|
MPPT
|
||||
|
MPPT Range @ Operating Voltage
|
120-450VDC
|
||||
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
||||
|
Maximum PV Array Open Circuit Power
|
6000W
|
||||
|
Maximum Solar Charge Current
|
100A
|
||||
|
Maximum AC Charge Current
|
100A
|
||||
|
Maximum Charge Current
|
100A
|
||||
|
Physical
|
|||||
|
Dimension (L*W*H) CM
|
61*24*41
|
||||
|
Net Weight (kgs)
|
9.5
|
||||
|
Communication Interface
|
USB/RS232
|
||||
|
Gross Weight(kgs)
|
10.5
|
||||
|
Environment
|
|||||
|
Humidity
|
5%-95% Relative Humidity (Non-condending)
|
||||
|
Operation Temperature
|
－10℃ to 50℃
|
||||
|
Storage Temperature
|
－15℃ to 60℃
|
||||
3.5KVA Hybrid Solar Inverter
Features:
1. Pure sine wave solar inverter, output power factory 1.
2. Configurable input voltage range for home appliances and personal computers via LCD setting.3. Configurable battery charging
current based on applications via LCD setting. 4. Configurable AC/Solar charger priority via LCD setting.
5. Compatible with mains voltage or generator power.
6. Auto restart while AC is recovering.
7. Overload, over temperature and short circuit protection.
8.Smart battery charger design for optimal battery performance.
9. Built-in anti-dusk kit for harsh environment. 10.Cold start function.
1. Pure sine wave solar inverter, output power factory 1.
2. Configurable input voltage range for home appliances and personal computers via LCD setting.3. Configurable battery charging
current based on applications via LCD setting. 4. Configurable AC/Solar charger priority via LCD setting.
5. Compatible with mains voltage or generator power.
6. Auto restart while AC is recovering.
7. Overload, over temperature and short circuit protection.
8.Smart battery charger design for optimal battery performance.
9. Built-in anti-dusk kit for harsh environment. 10.Cold start function.
