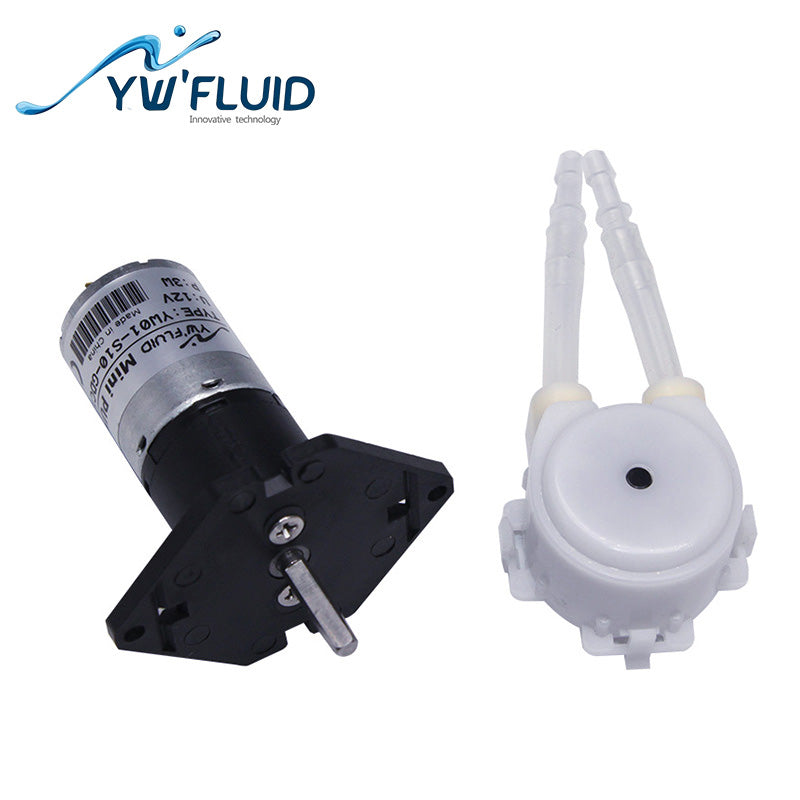

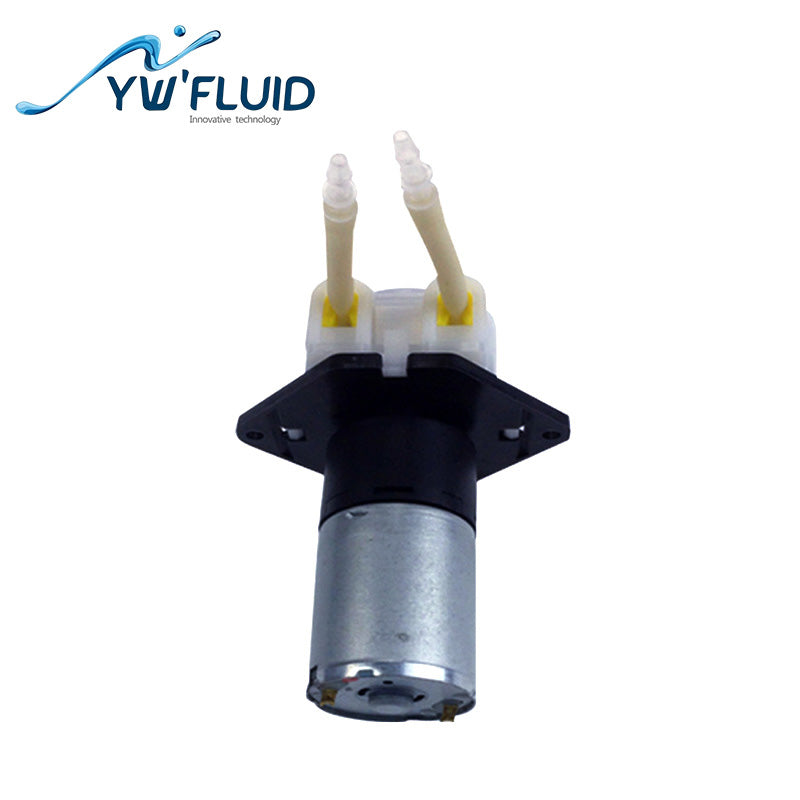

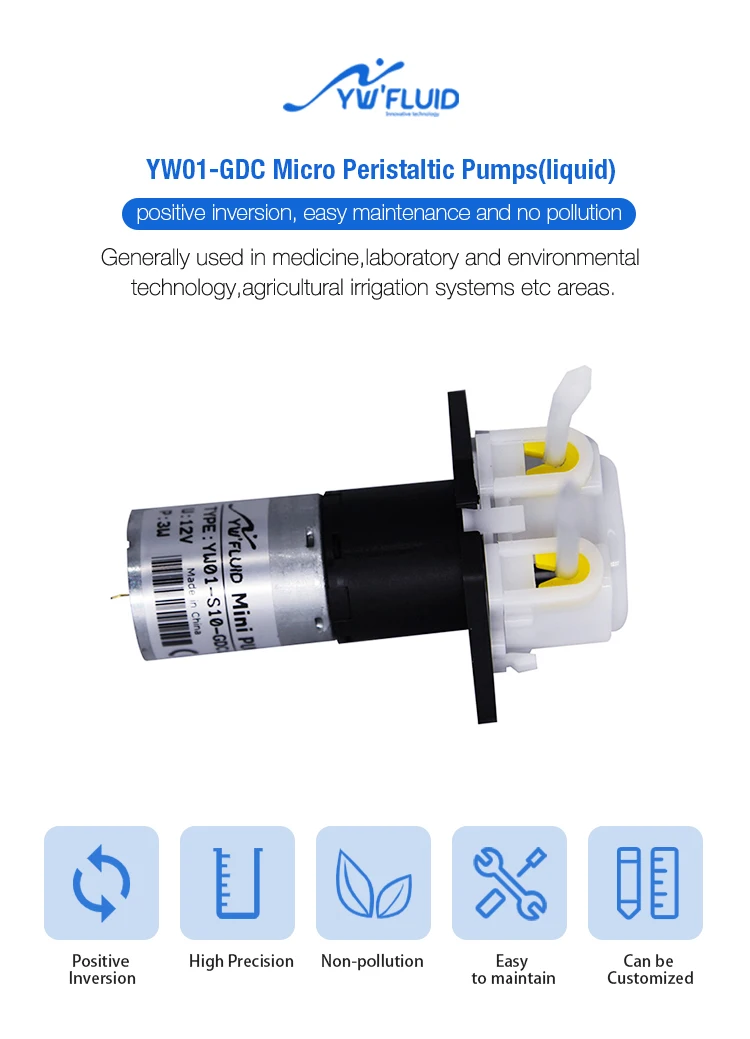

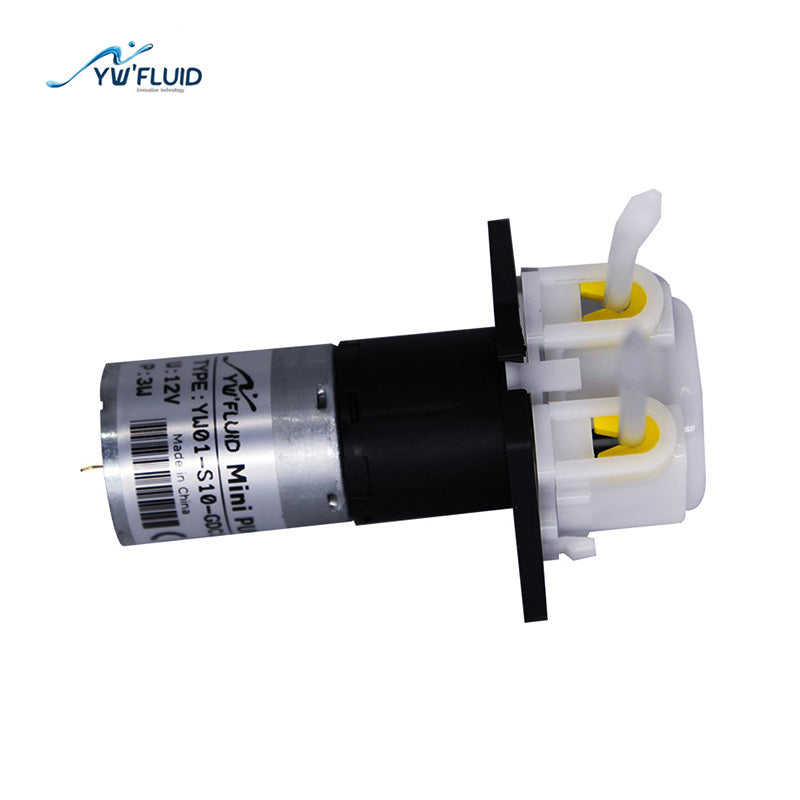

YW01-GDC-12V/24V Dosing Pump Peristaltic Head Lab Chemical Dosing Pump For Aquarium Speed Adjustable 150ml/min
Share

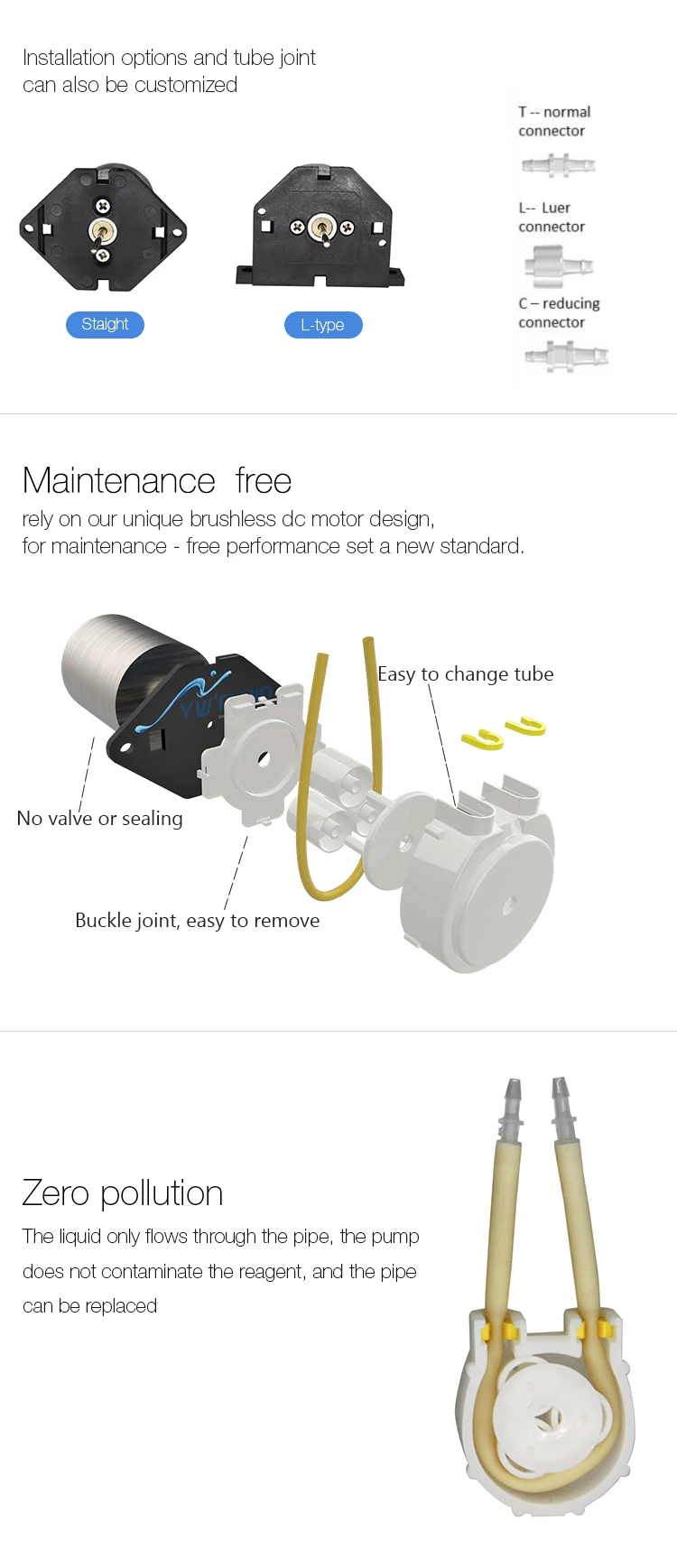

-Exquisite appearance,easy to maintenance.

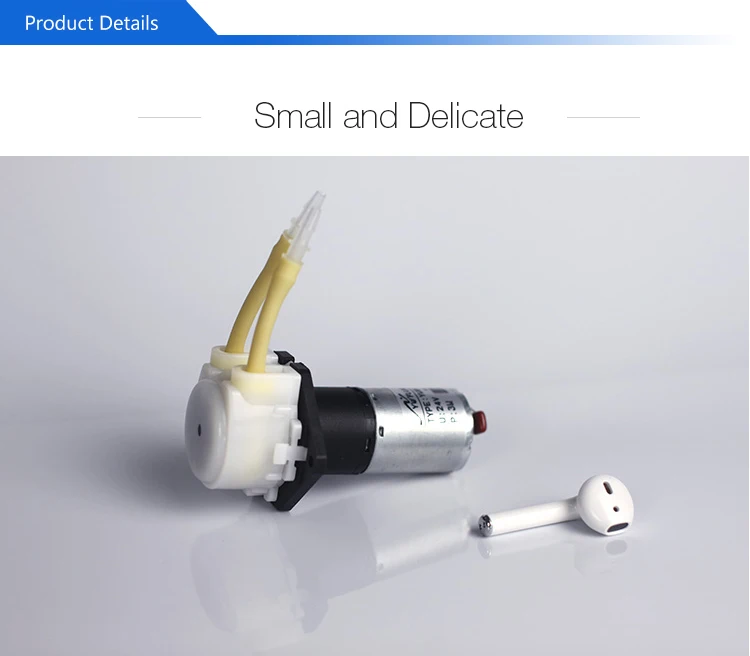

-Smaller size,lower noise,high precision,good stability.

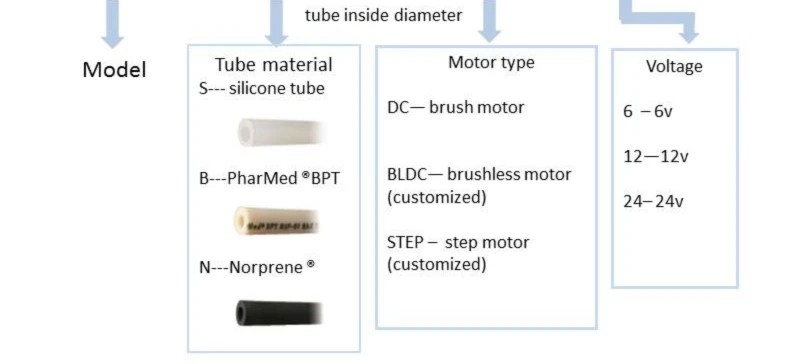

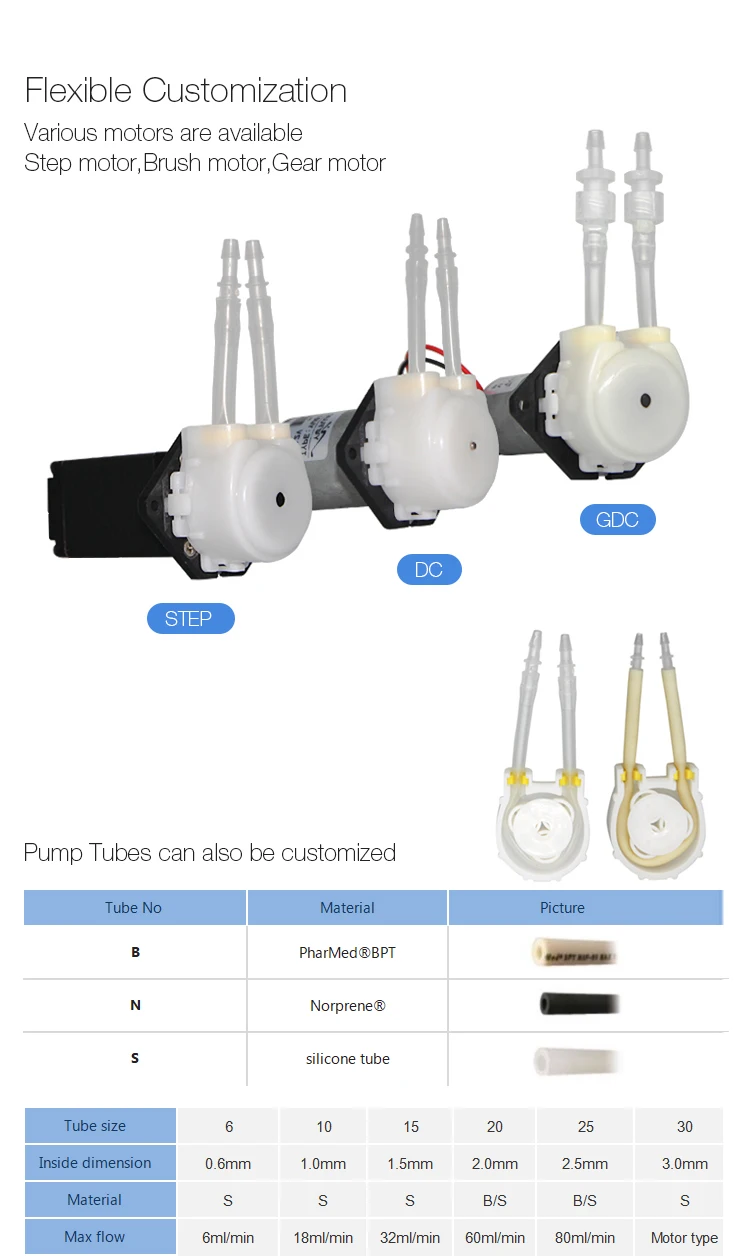

Tube selection:
| Tube No. |
Material |
information |
| B |
PharMed®BPT
|
|
| N |
Norprene®
|
|
| S |
silicone tube
|
|
| Tube size |
06 |
10 |
15 |
20 |
25 |
30 |
| Inside dimension |
0.6mm |
1.0mm |
1.5mm |
2.0mm |
2.5mm |
3mm |
| Material |
S |
S |
S |
B/S |
B/S |
S |
| Max flow |
6ml/min |
18ml/min |
32ml/min |
60ml/min |
80ml/min |
100ml/min |
| Motor type |
DC |
GDC |
STEP |
| Positive pressure |
0.1MPa |
||
| Negative pressure |
-0.09 MPa |
||
| Hose size applied |
1~1.2mm |
||
| Motor temp |
50℃ |
50℃ |
60℃ |
| Noise |
<50dB |
<50dB |
<52dB |
| Motor lifetime |
800hrs |
500hrs |
10000hrs |
| Work temp |
0~40℃ |
0~40℃ |
0~40℃ |
| Relative humidity |
< 80% |
< 80% |
< 80% |
