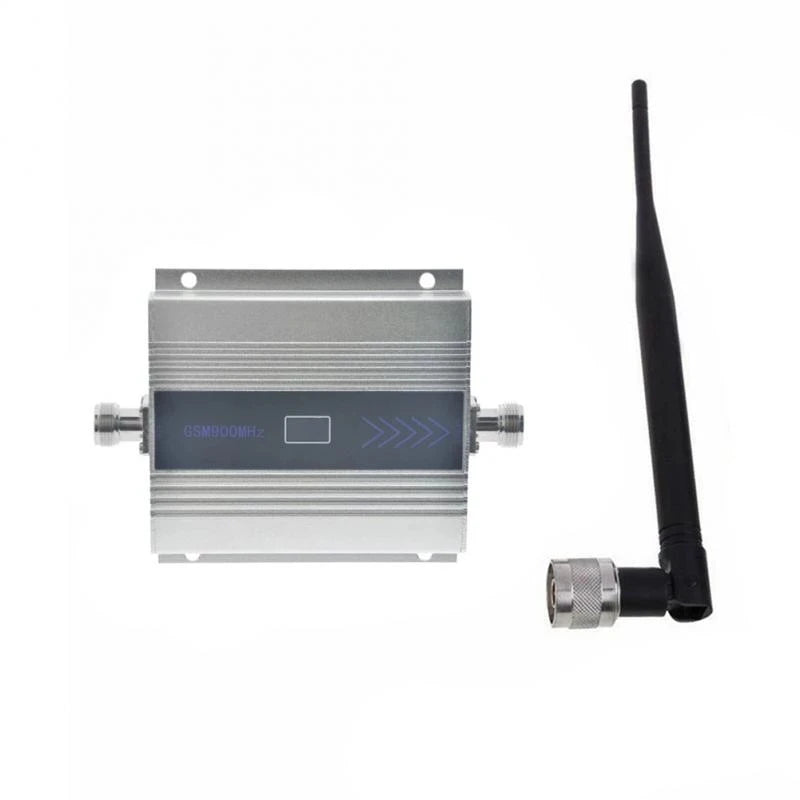

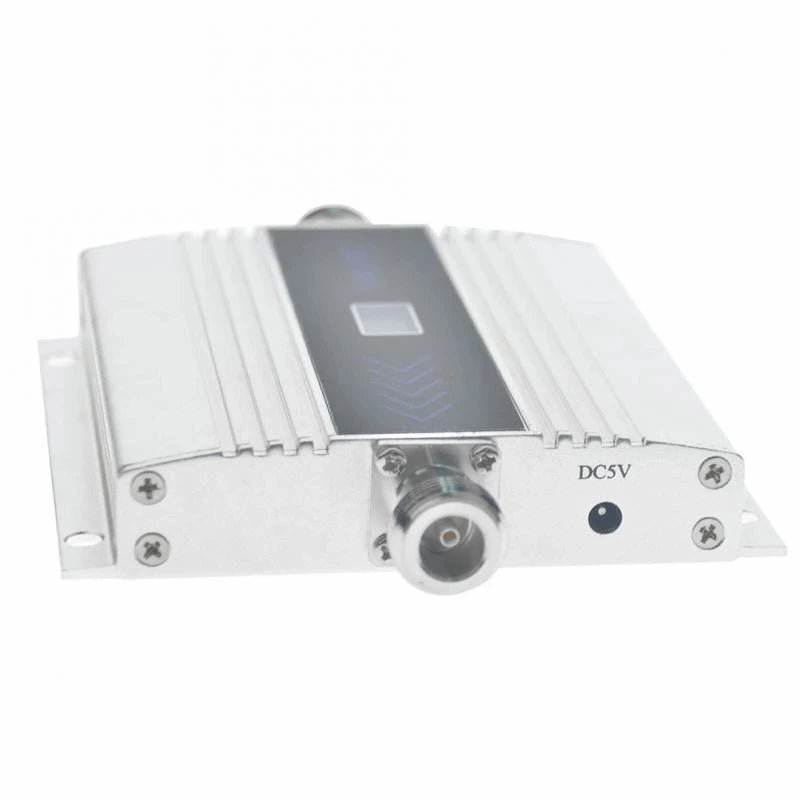

900Mhz Signal Repeater GSM 2G 3G 4G Cellular Signal Amplifier Mobile Signal Booster Repeater+2 Antenna With 10m Cable

Write a review

Save -50% Rs. 10,000.81 ~~Rs. 19,808.58~~

Brand : Shanvis

Collection : Mobiles & Accessories

SKU : 6089679013089_96025900

Availability : 99999 In Stock Sold Out 99999

HURRY ! ONLY 99999 LEFT IN STOCK.

defaultdefault

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Description:

Application Scope:

A, Small regions of signal or weak signal
blind area, such as underground or semi-underground place of business,
basements, underground parking, etc.;

B, Complaints from small-scale
hot-signal areas, such as conference rooms, a small supermarket, small
shopping malls, the office and small public areas, etc.;

C, Traffic
and social influence of large areas, such as bars, cafes, dance halls,
cafes, fitness clubs, leisure and entertainment, etc.;

D, Elevator, lift wells in particular, not in the lift cables laid;

E, Home, office, luxury yachts, private cars, public security system and road safety management, etc.

Steps that describe the work of Repeater:

1) The outside antenna receives the signal from the nearest mobile base station.

2) The outside antenna sends the received signal through the coax cable to

the installed Repeater.

3) The Repeater accepts the low signal and improves it.

4) The improved signal goes to the inside antenna through the connection coax cable.

5) The inside antenna send the improved good signal to your mobile phone.

Installation Approaches:

1) Fix up outdoor antenna reception on housetop

or outside the window and point it to the signal tower.

2) Connect outdoor antenna to BTS port in repeater machine through cable.

3) Connect indoor antenna(s) to MOBILE port in repeater machine through cable also.

4) Plug power adaptor into AC power socket and finish installation.
Specifications:

Product Description
Specifications:
Voltage : 110-220V AC or DC5V 1A
Frequency range : 890MHz--915MHz ( UPLINK )
935MHz--960MHz ( DOWNLINK )
Gain:Uplink: 55dBi Donwlink:60dbi
Power:-70 ~ -40dBm/FA (1.23MHz)
Output power : Uplink:17dbm Donwlink:17dbm
Seclusion : >65db
Ambient temperature:-10C-50C
Configuration: 5V/ 1A prower
Impedance: 50 Ohm
Net weight : 0.28kg
1.Support Maximum coverage area is 200 square meters.
( Depend on the area condition)
2.One indoor antenna only use for about 30-100 square meters in open space.(The indoor and outdoor antenna quality depends on the
indoor signal coverage area.）
3.If want to make all use of 200 square meters which the host supports,
need to add more indoor antennas and power divider / splitter.

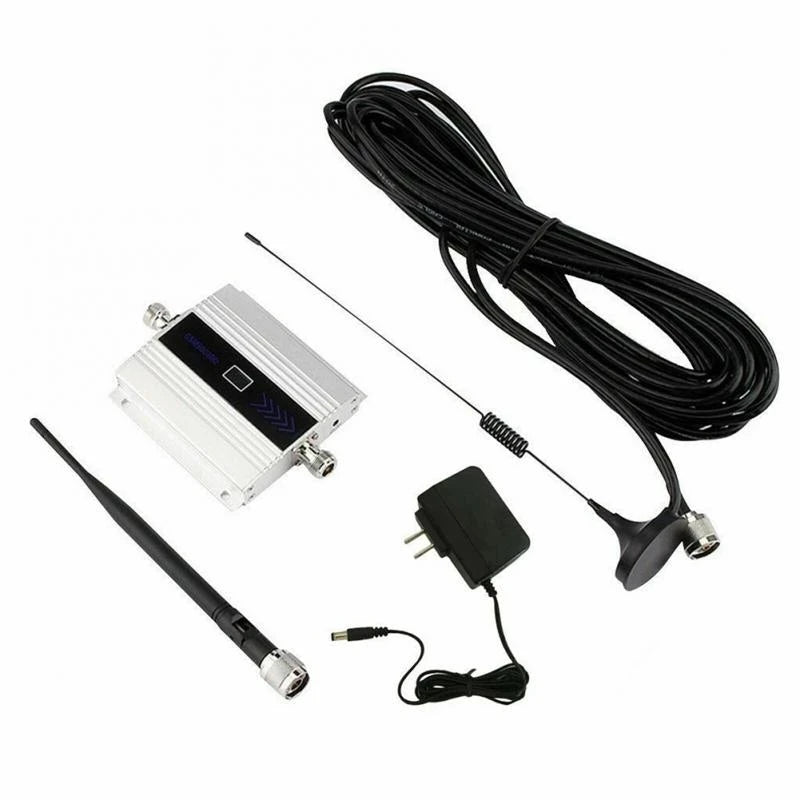

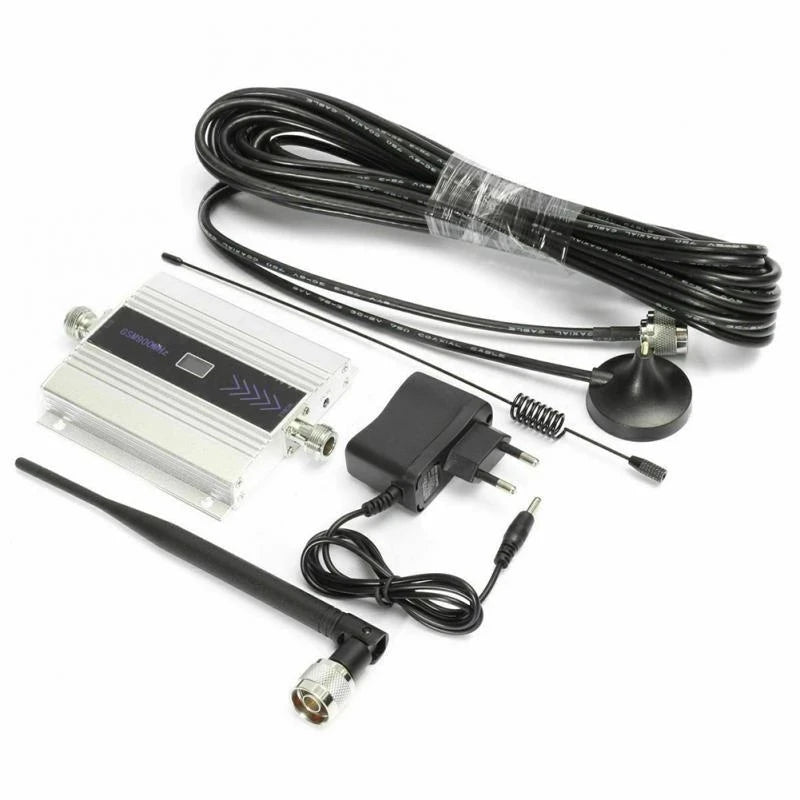

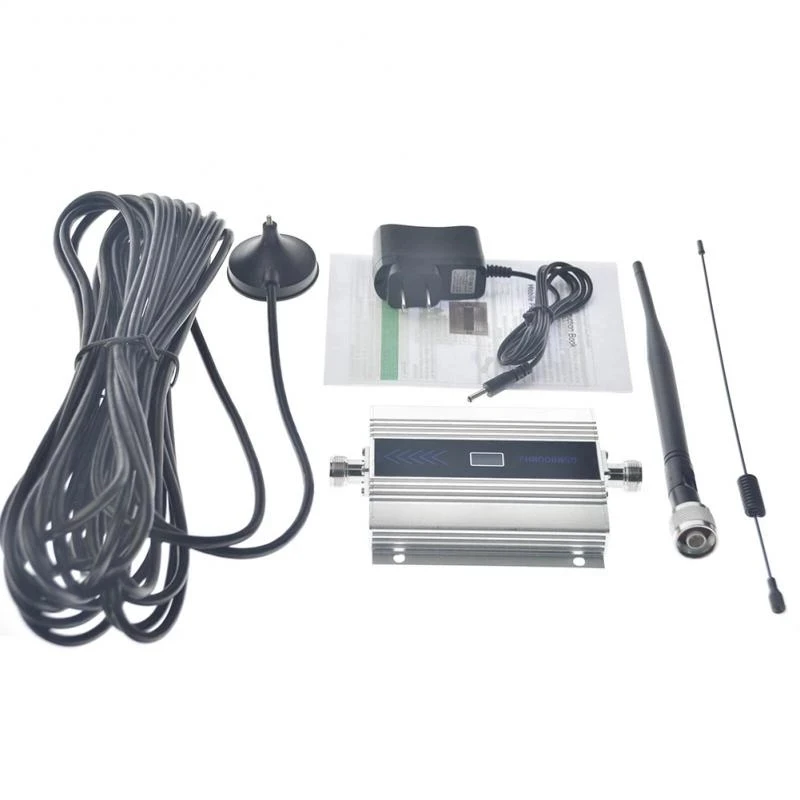

Package Included:

1* 900MHz booster
1* charger(We send EU adapter, if you need other models, please leave a message, thank you!)

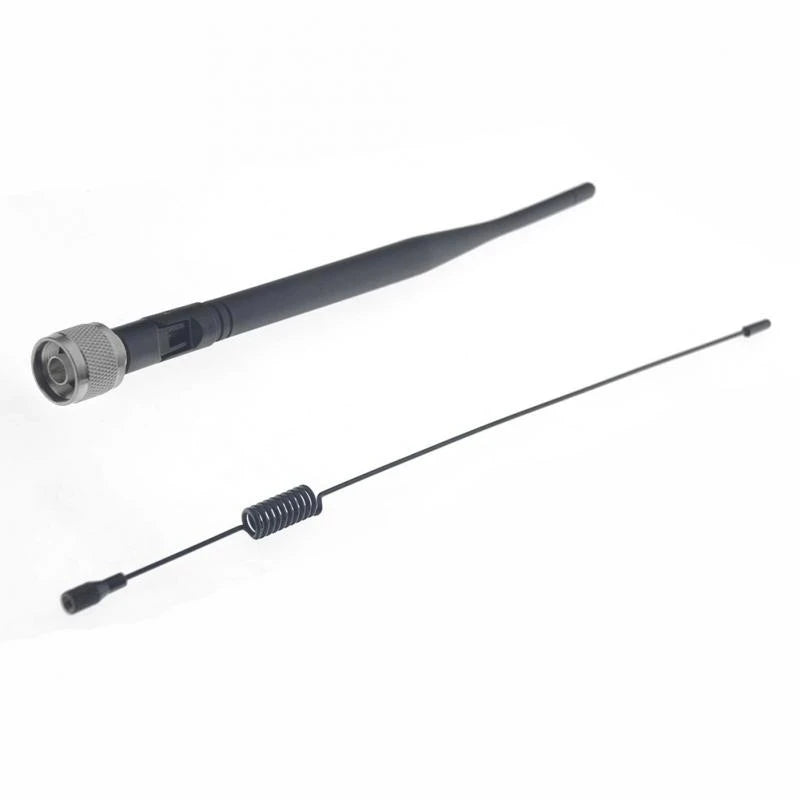

1* indoor antenna N male
1* outdoor antenna N male with 10M cable
1* user manual
