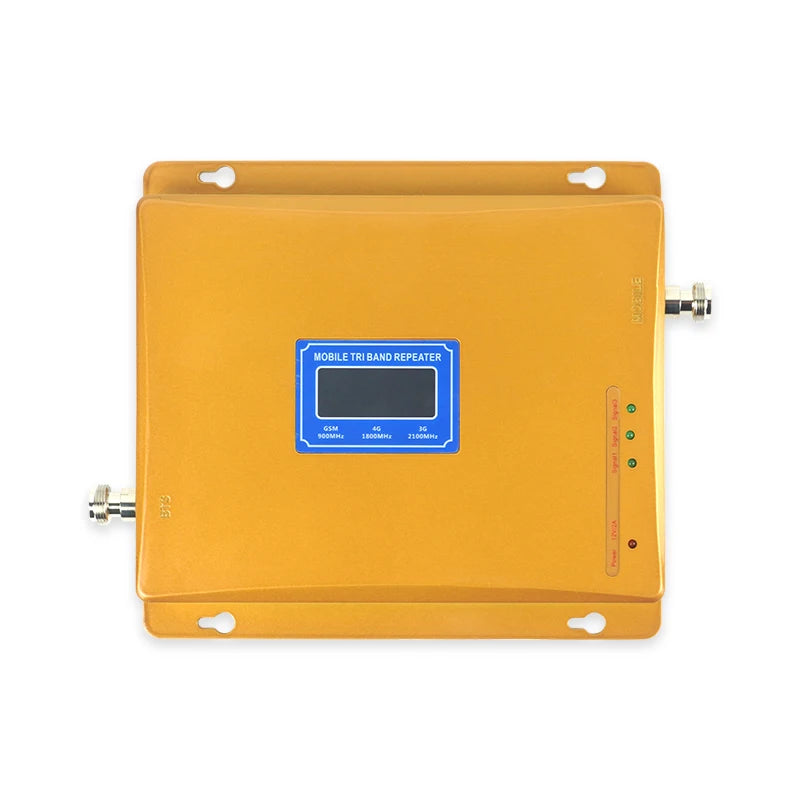

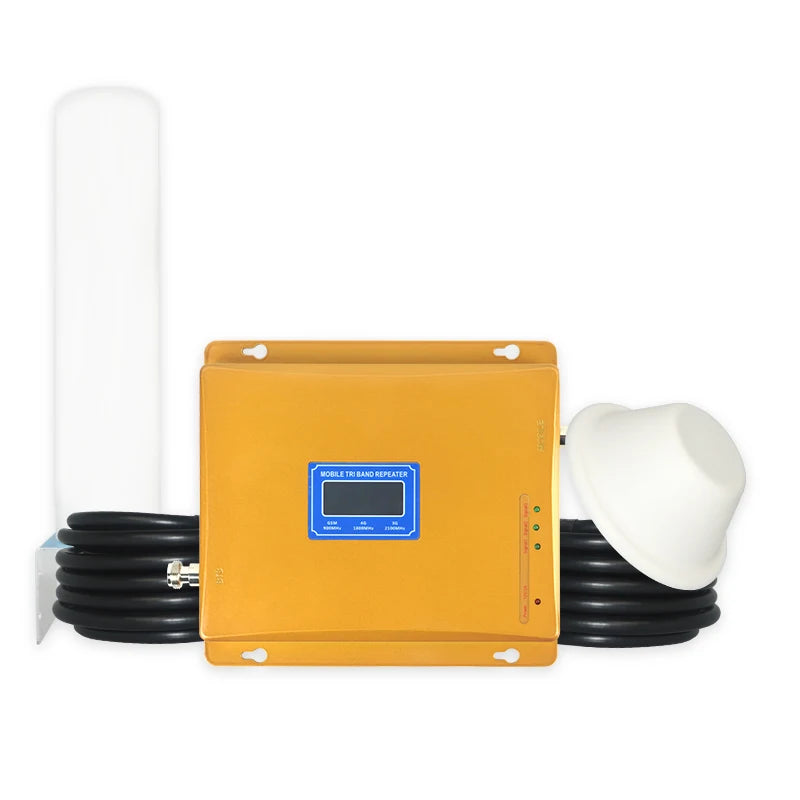

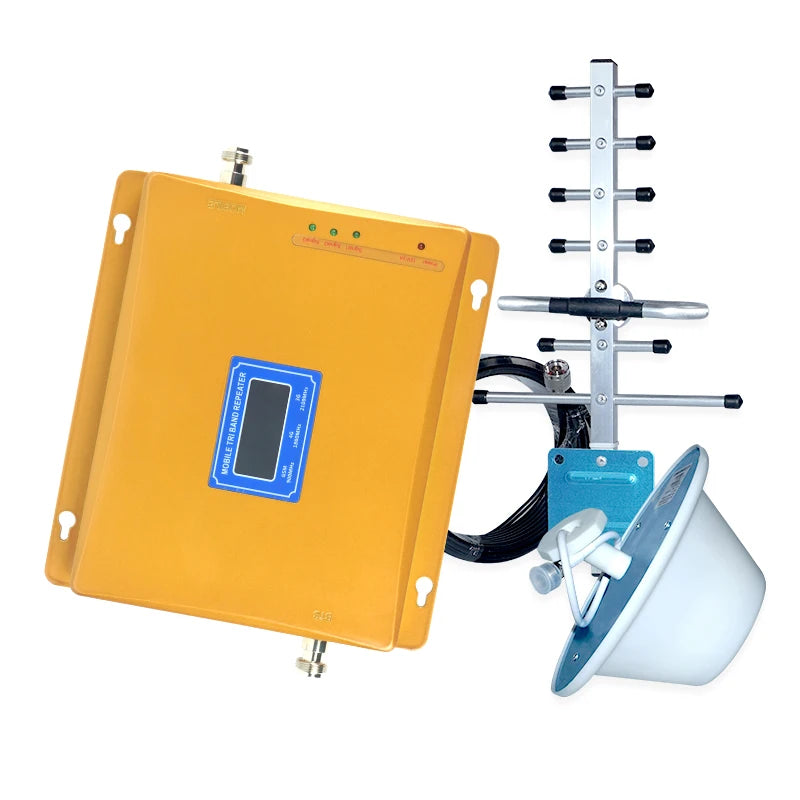

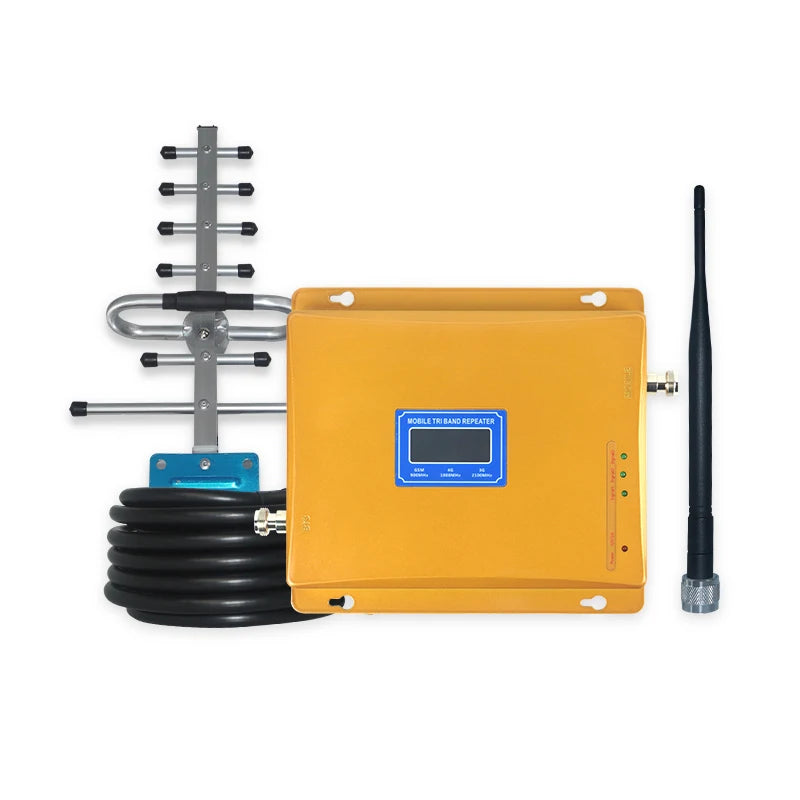

Dual Band GSM Mobile Signal Repeater home Signal Repeater Cell Phone Signal Booster with outdoor antennaWT
WT-GD01G 900/2100MHz
Product Description
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
Advantage of signal repeater
| 1. Enhance Mobile Phone Signal Strength |
| 2. Improve Communication Quality |
| 3. Reduce Cellphone Radiation |
| 4. Protract Cellular Battery Life |
| 5. Economic Building Cost |
| 6. Easy Operation |
| 7. Easy Installation |
| 8. Build-in Power Supply |
Specification of signal repeater
| Frequency range | Uplink: 890-915/1920-1980MHz
|
| Gain ( dB) | Uplink: 60±3dBi Downlink: 65±3dBi |
| Export power (Po) | 20dBm±3dBm |
| Pass band ripple | ≤3dB |
| I/O impedance | 50Ω/N connector |
| Noise figure | ≤4dB |
| Transmission Delay | ≤0.5μs |
| Ambient temperature | -10°C~60°C |
| Power supply | AC110~240V 45~55Hz |
| Size | 240 x182 x 22 mm |
| Reliability | To the GB6993-86 standard |
| Electromagnetic compatibility |
To the ETS300 694-4 standard |
| Function | a) Power supply LED denote b) Export power LED denote |
| coverage area | 2000m2 |
Packing list
| Item | Quantity(Piece) |
| Booster | 1 |
| Power adatper(According your country standard type) | 1 |
| User manul | 1 |
Note:
1) The product does not include accessories of cable, connectors and antennas that you need to buy extra. It only provide power adaptor and instruction book.

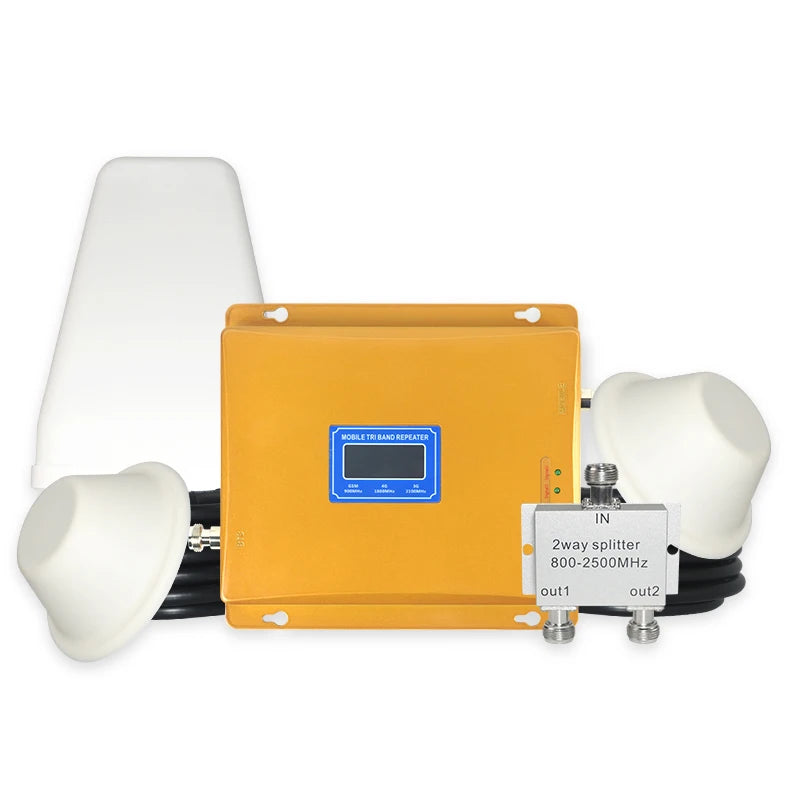

2) One indoor antenna only use for about 300 square meters. If you want to make all use of 1000 square meters which the host supports, you need to add more indoor antennas (about 3-4) and power divider / splitter. Welcome your inquiry if you need.
Installation Approaches of signal repeater
1.Fix up outdoor antenna reception on housetop and point to signal tower.
2.Connect outdoor antenna to "outdoor" port in repeater machine through cable
3. Connect outdoor antenna(s) to "indoor" port in repeater machine through cable also.
4.Plug power adaptor into AC power scoket and finish installation.
Steps of describe the work of Repeater.
1) The outside antenna receives the signal from the nearest mobile base station.
2) The outside antenna sends the received signal through the coax cable to the installed Repeater.
3) The Repeater accepts the low signal and improves it.
4) The improved signal goes to the inside antenna through the connection coax cable.
5) The inside antenna send the improved good signal to your mobile phone.
Technique Supporting of signal repeater
1.If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve-70DBM.
2.If can not call out ,please adjust the direction of outdoor antenna.
3.If strength is not steady,please check if outdoor &indoor antenna are too close ,please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not at the same horizontal line(outdoor antenna can be one floor higher than the repeater and indoor antenna).
4.Indoor antenna and repeater better to be minimum 4 meters far away from nearby windows and doors.
To use this product to enlarge your signal, the outdoor signal shall be as good as possible. The product will not work well if our outdoor signal is not good or bad.
In case the indoor signal is always very low while outdoor signal is very good, the repeater can work well. If the indoor signal is sometimes full sometimes not at all before installing, this environment is not suitable to install the repeater.
Reasons of Purchase signal Repeater.
1) The Signal Repeater provides the well-organized service that is why after installation of the system the quality of the connection will be really great.
2) Signal Repeater require no additional wires being attached to your cell phone thus allowing you to use your cell phone without any extra troublesome accessories, in other worlds, no physical connection to your cell phone.
3) They are practical, beautiful and easy to install. You will not need to hire anybody to provide the installation of the equipment. You will be able to install it by yourself using only the manual list attached to your repeater.
4) The system can be used by multiple phones. All phones that are under the coverage and are suitable for the frequency of your repeater can use the amplified signals.
5) Signal Repeater is able to cover different coverage: from small to large. In this case you can decide which of our repeater is suitable for your office or supermarket.
6) Repeater works at full duplex. It means that they not only receive the weak signal from the mobile base station and then divert to mobile phone after amplifier. They also receive the signal from your mobile phone and then send it to the mobile base station.
7) Our equipment is completely safe. Mobile repeaters do not produce any radiation.
