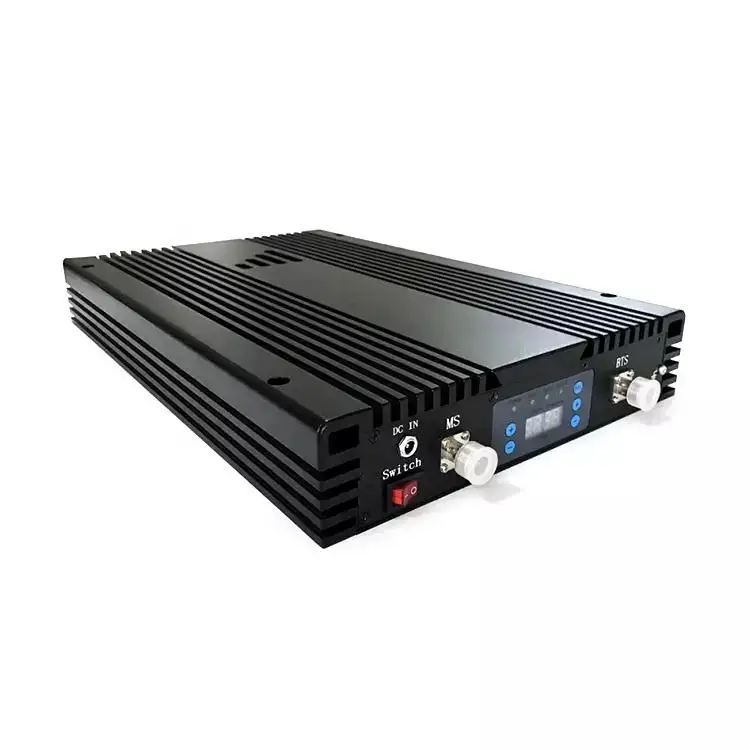

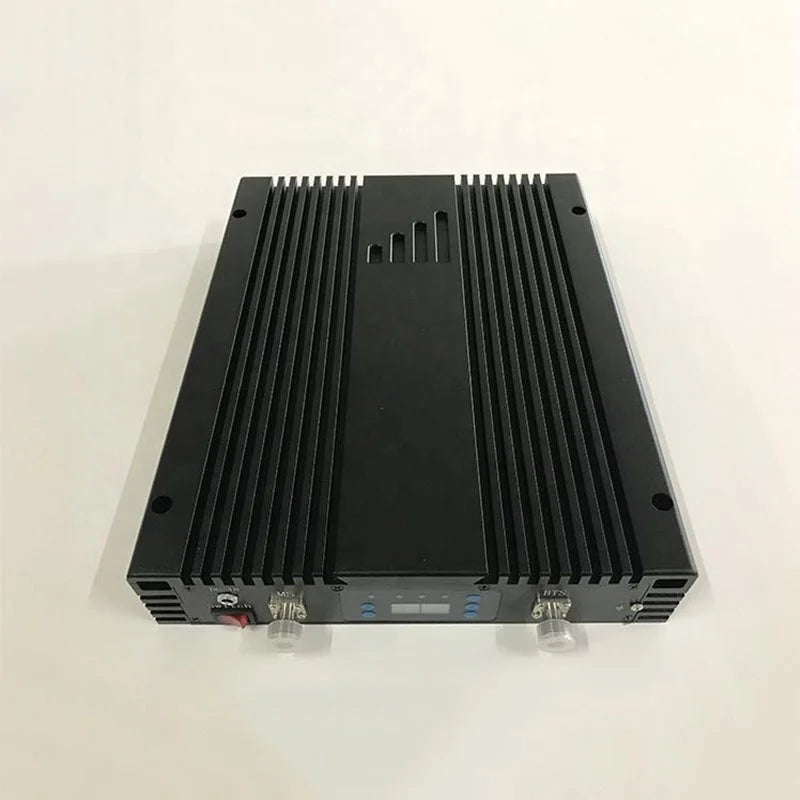

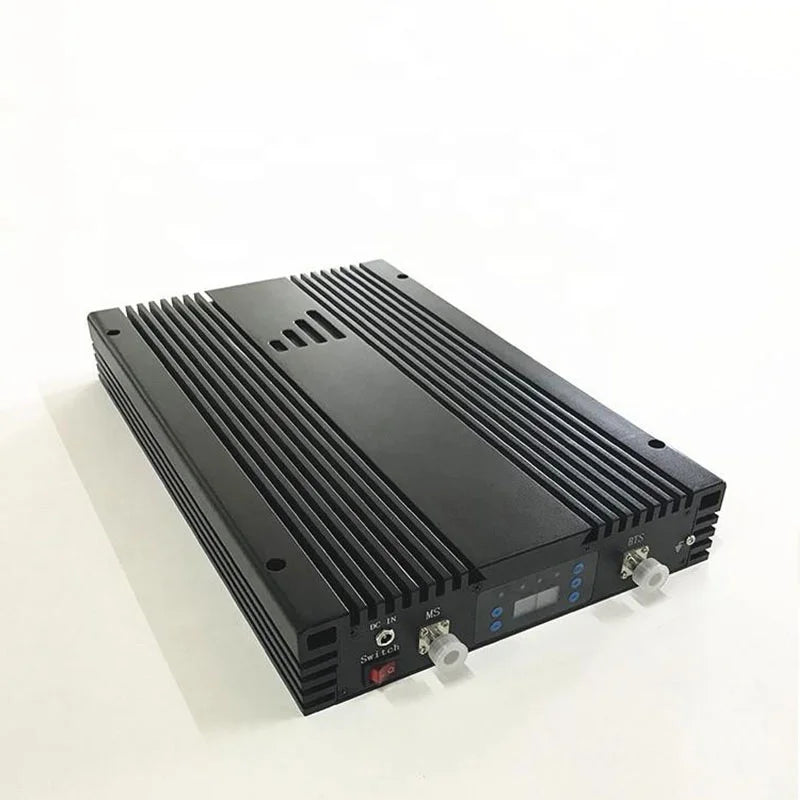

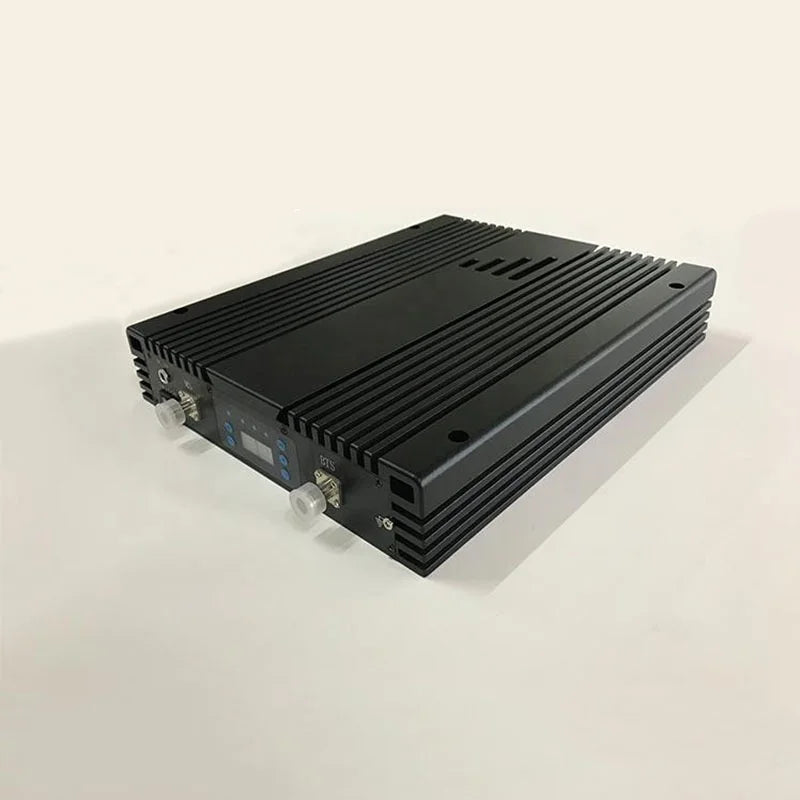

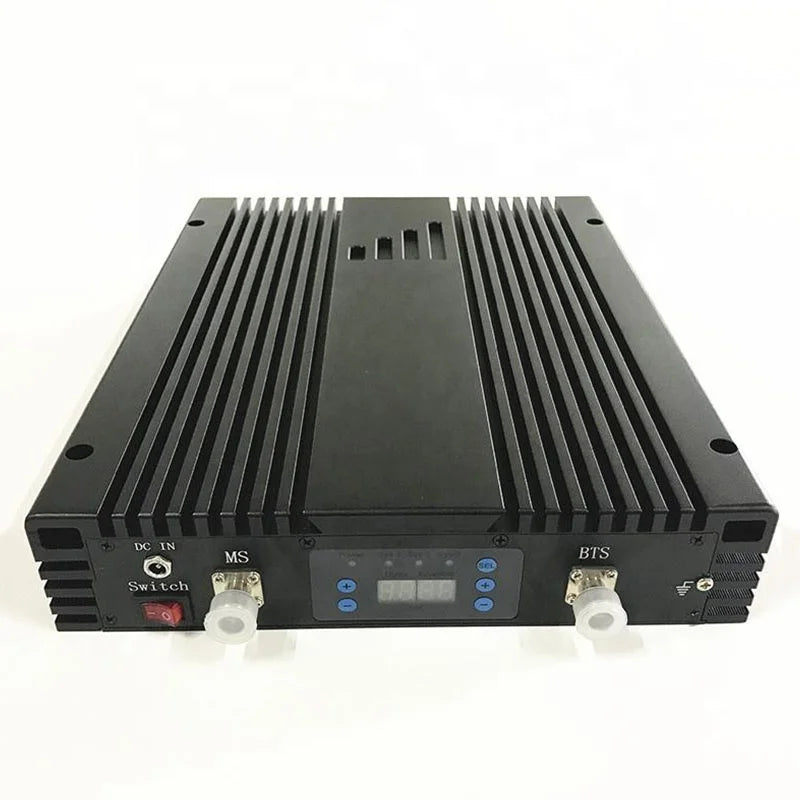

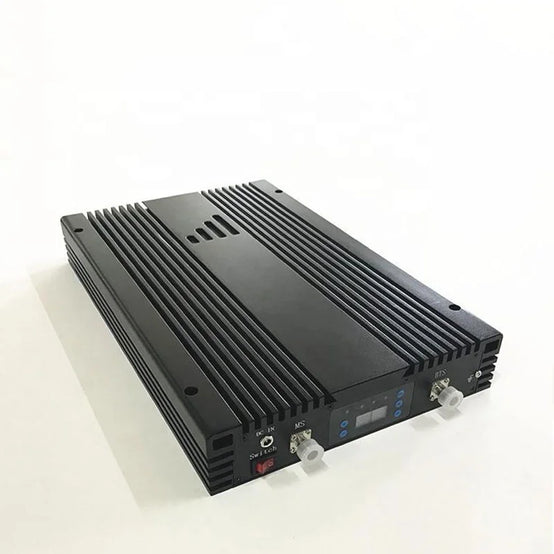

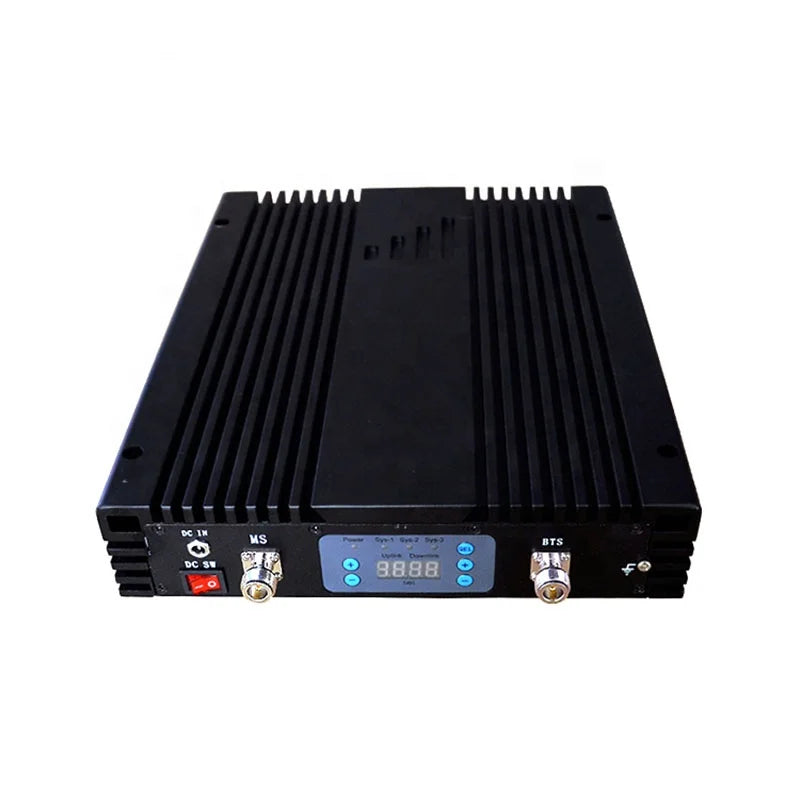

JIAMUSI Tri band phone signal booster 900MHz GSM1800 2600MHz 2g mobile signal amplifier 27dBm signal booster 3g 4g repeater

Write a review

Save -56% Rs. 90,321.04 ~~Rs. 203,222.34~~

Brand : Shanvis

Collection : Mobiles & Accessories

SKU : 6089685013089_96027537

Availability : 0 In Stock Sold Out 0

defaultdefault

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Parameters			Uplink	Downlink
Frequency Range	LTE800 (Band 20)	832 ~ 862MHz	791 ~ 821MHz
		GSM&EGSM (Band 8)	880 ~ 915MHz	925 ~ 960MHz
		DCS (Band 3)	1710 ~ 1785MHz	1805 ~ 1880MHz
		WCDMA (Band 1)	1920 ~ 1980MHz	2110 ~ 2170MHz
		LTE2600 (Band 7)	2500~2570MHz	2620 ~ 2690MHz
Our combination is 900+1800+2600MHz. You can choose any three combinations according to your needs.
Operation Bandwidth (-3dB)			Wide Band
Maximum Gain	JSP-23	≥65dB	≥70dB
		JSP-27	≥70dB	≥78dB
Output Power	JSP-23	≥20dBm	≥23dBm
		JSP-27	≥23dBm	≥27dBm

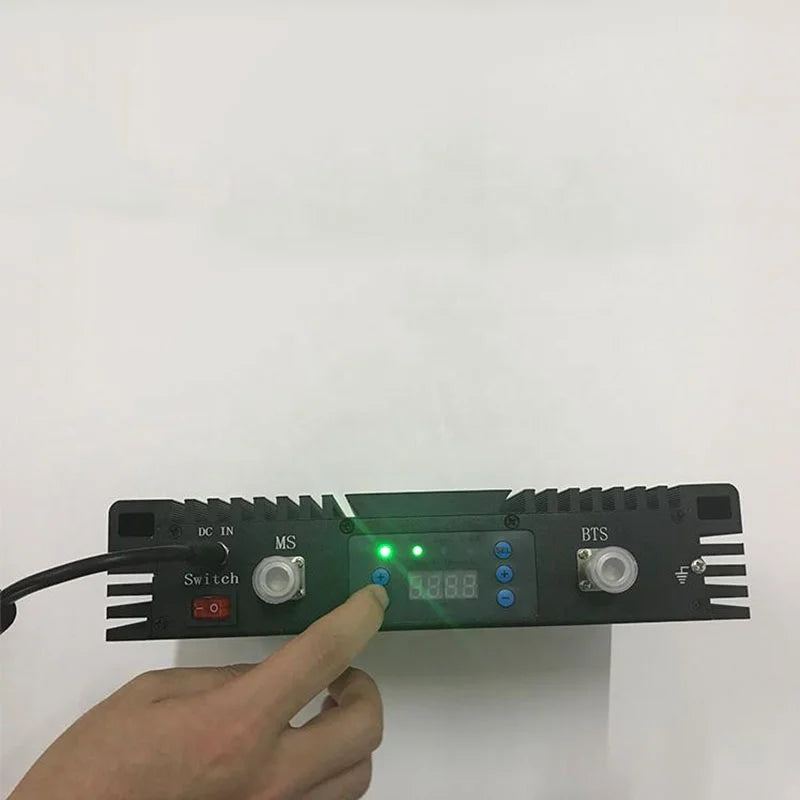

MGC (Manual Gain Control)			31dB range/1dB step
AGC (Automatic Gain Control)			≧25dB
Spurious Emission	9KHz~1GHz	≦ -36dBm
		1GHz~12.75GHz	≦ -30dBm
Noise Figure			≤ 6dB
VSWR			≦2.0
Group Delay			≤1μs
LED Alarm	Power LED	DC ON/OFF
		System LED	Alarm Red when output power over 3dBm
RF Connector			N-Female
Impedance			50Ω
Power Consumption			0.5W
Power Supply			Input: AC 110~240V; Output: DC 9V/6A
Operating Temperature			-10℃~50℃
Environment Conditions			IP30
Dimensions (D x W x H )			*26835458mm*
Weight			7KG

Products Description

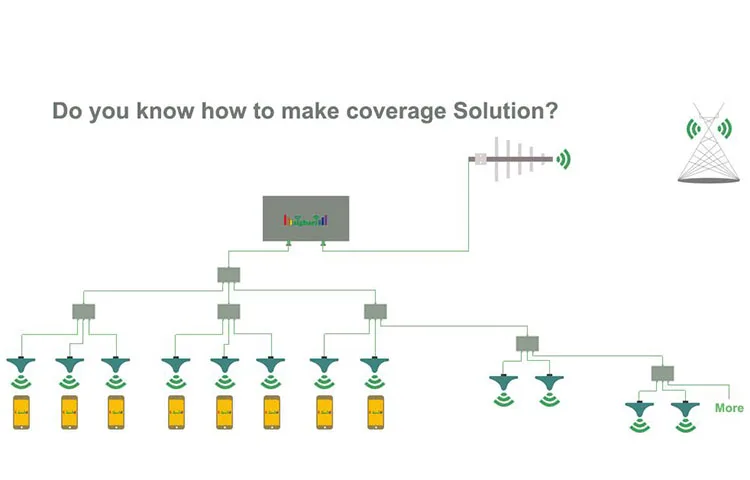

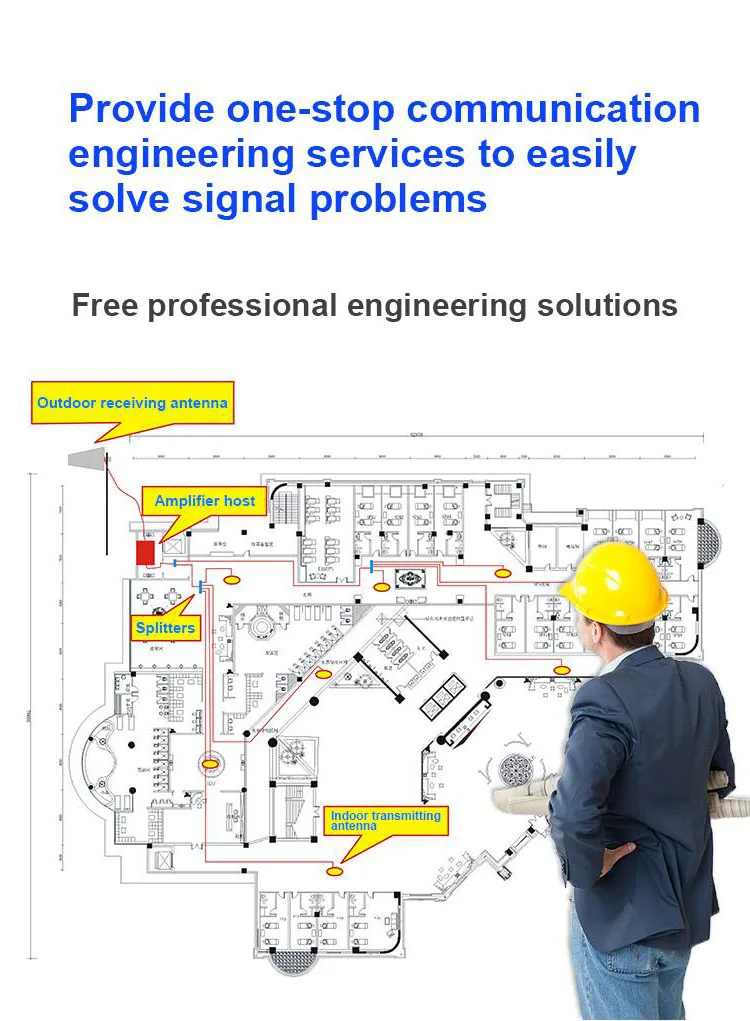

we are manufacture of signal booster, we can provide you tri band, dual band, single band products. we also can provide you all accessories, such as indoor antenna, panel antenna, coaxial cable and so on. A mobile phone repeater is ideal for house, home, office use,building.
