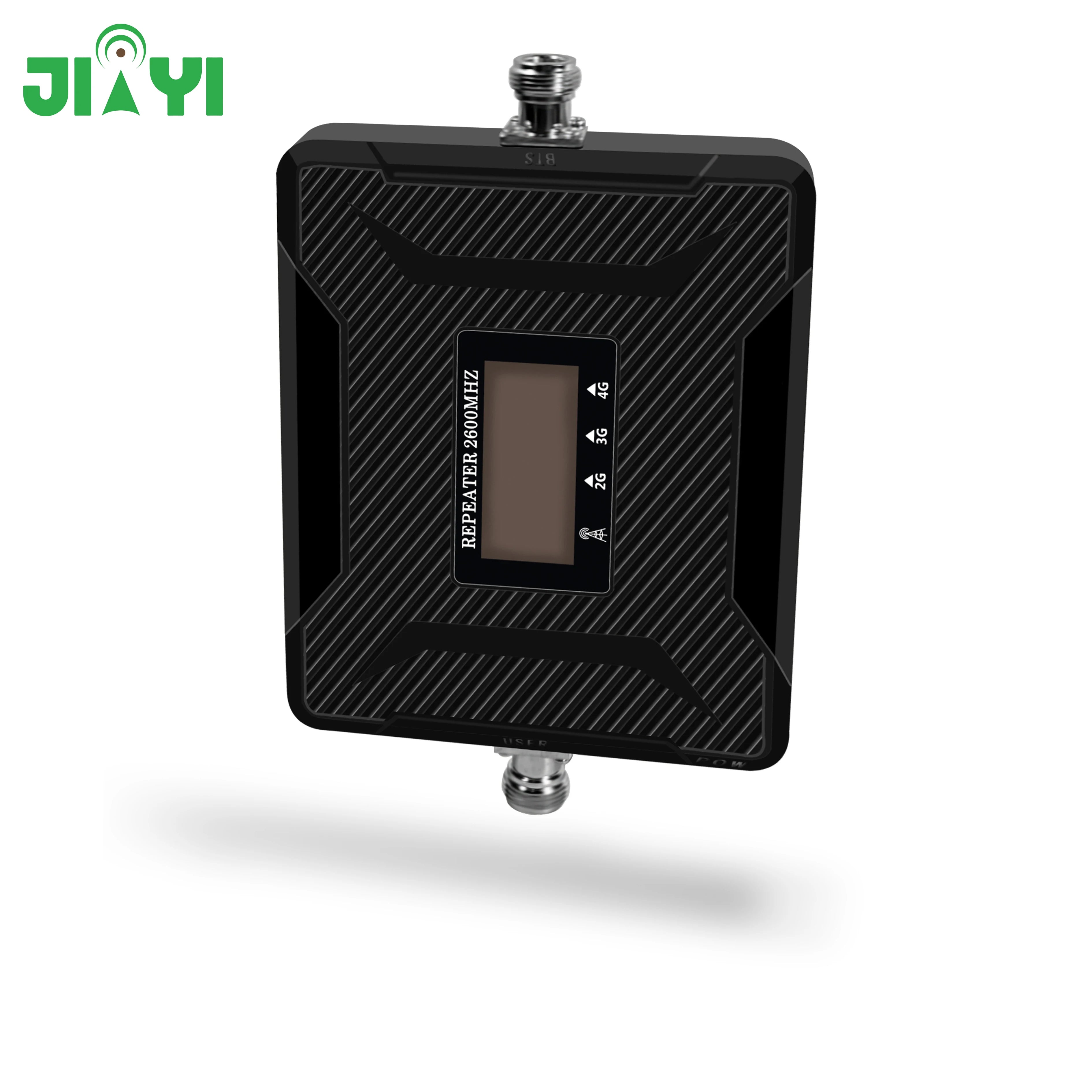

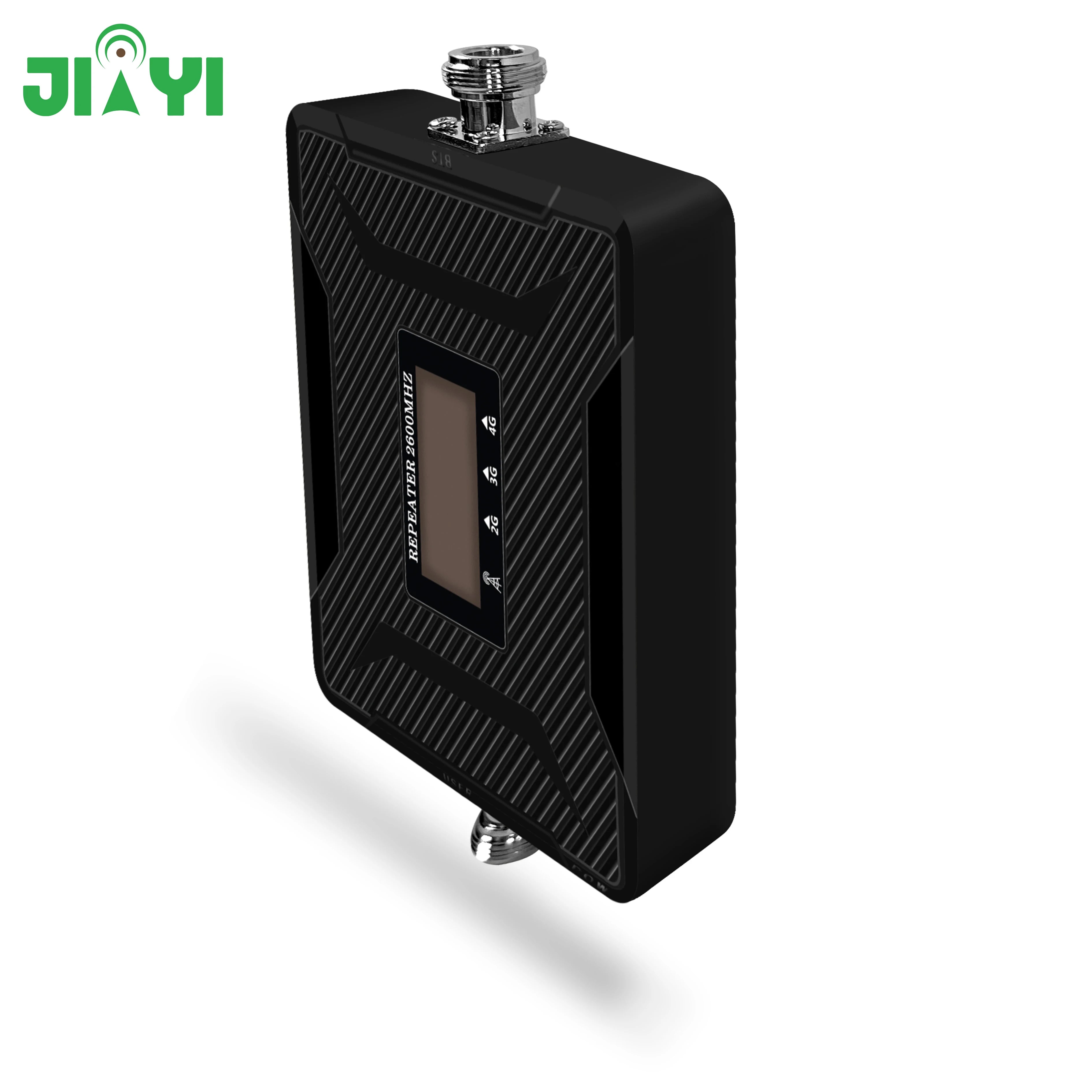

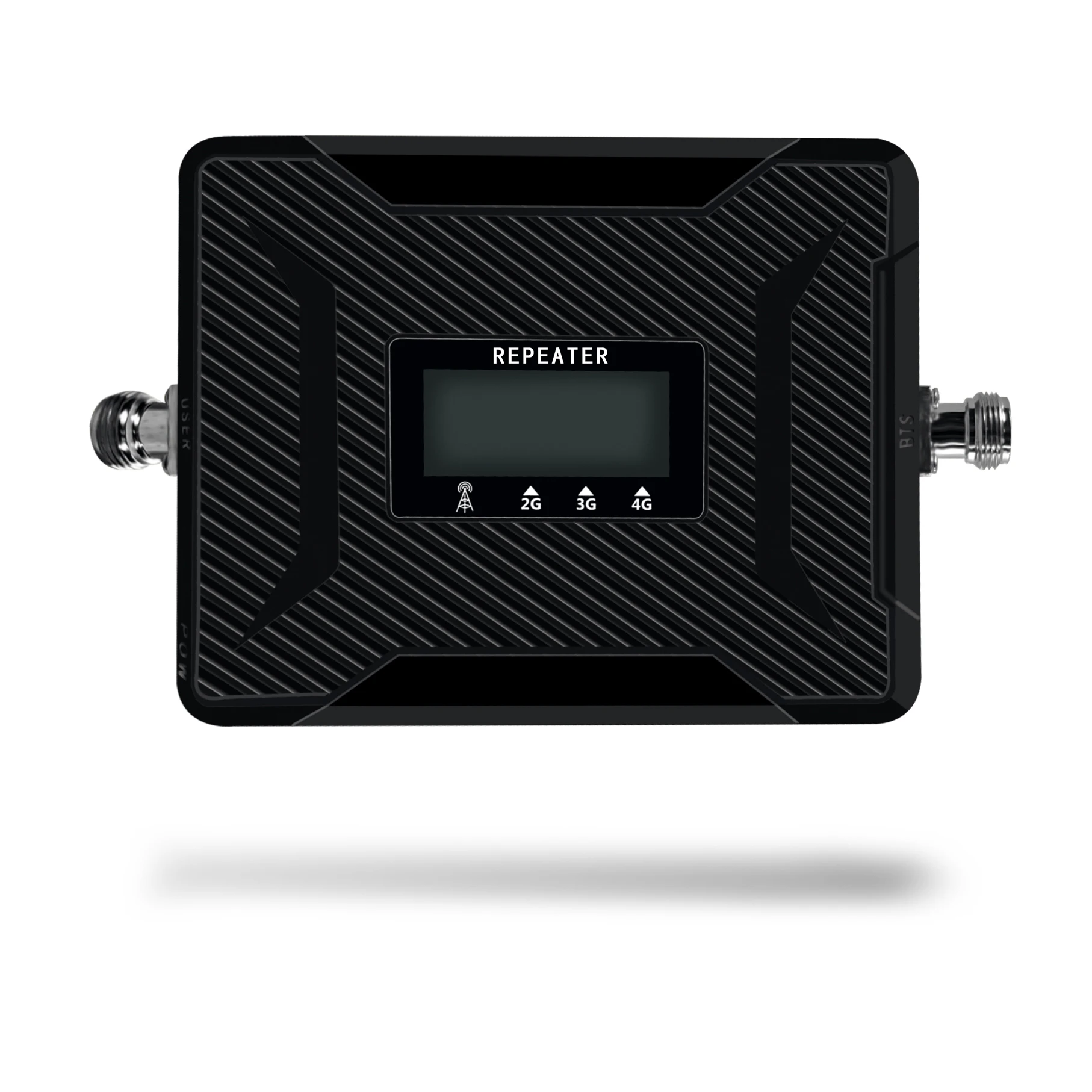

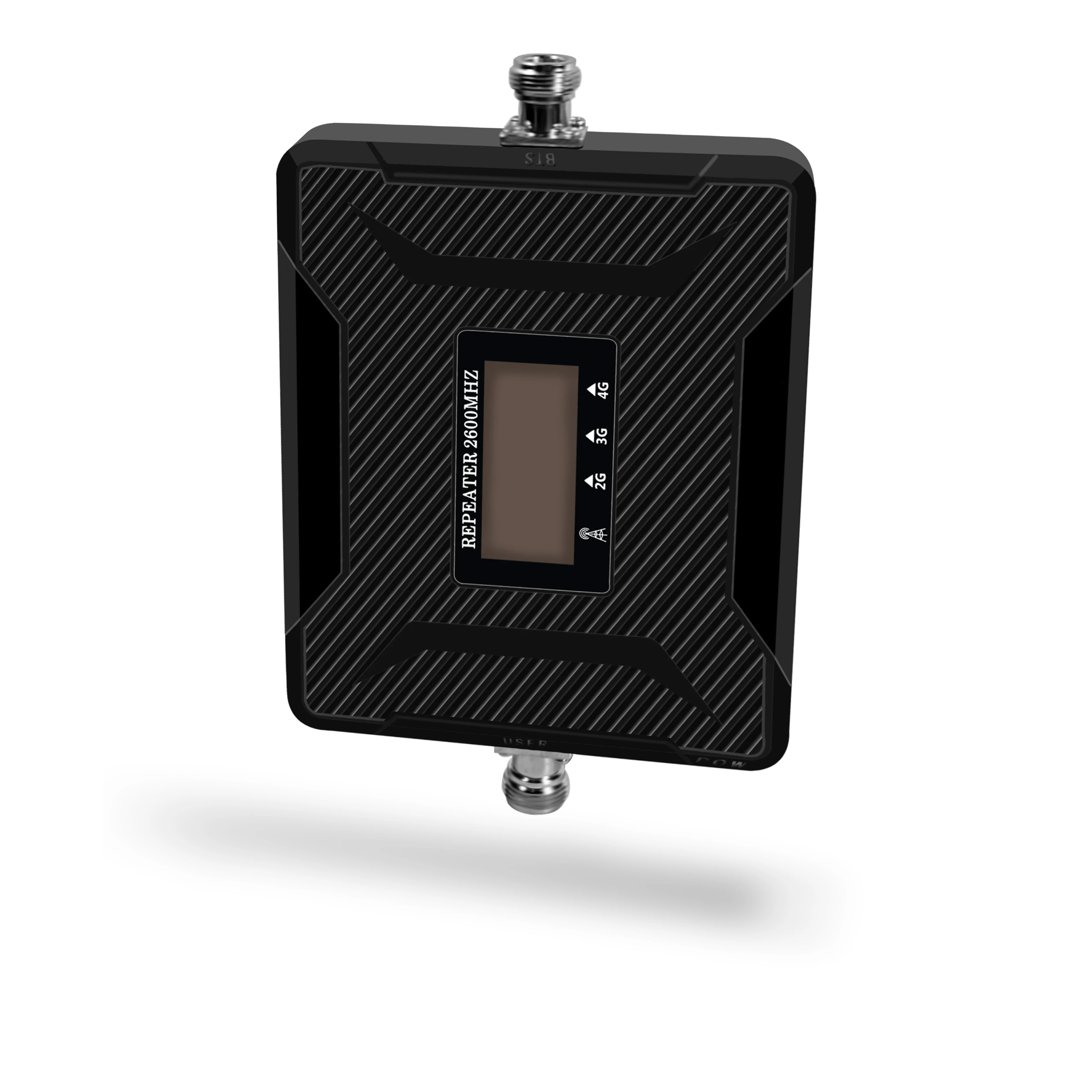

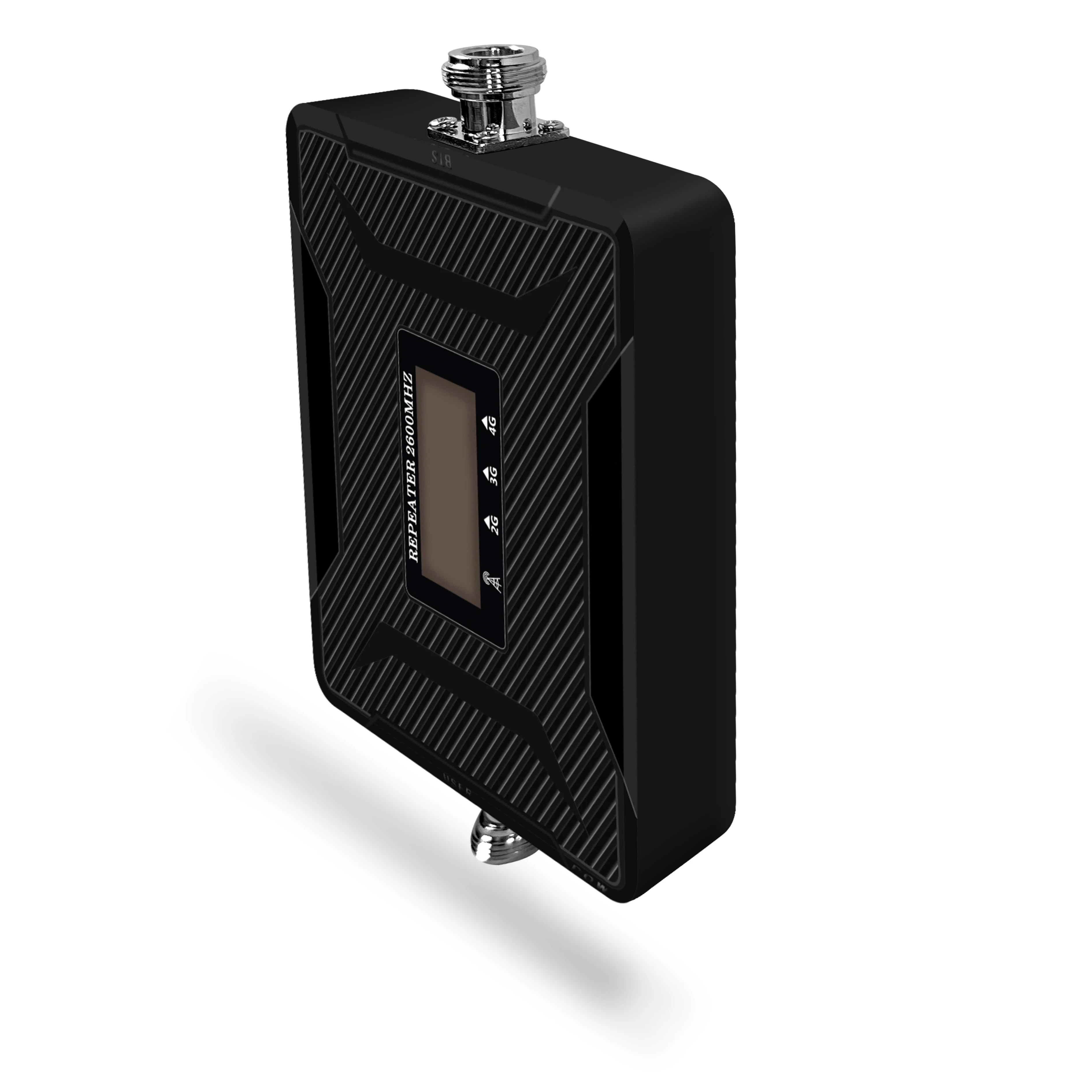

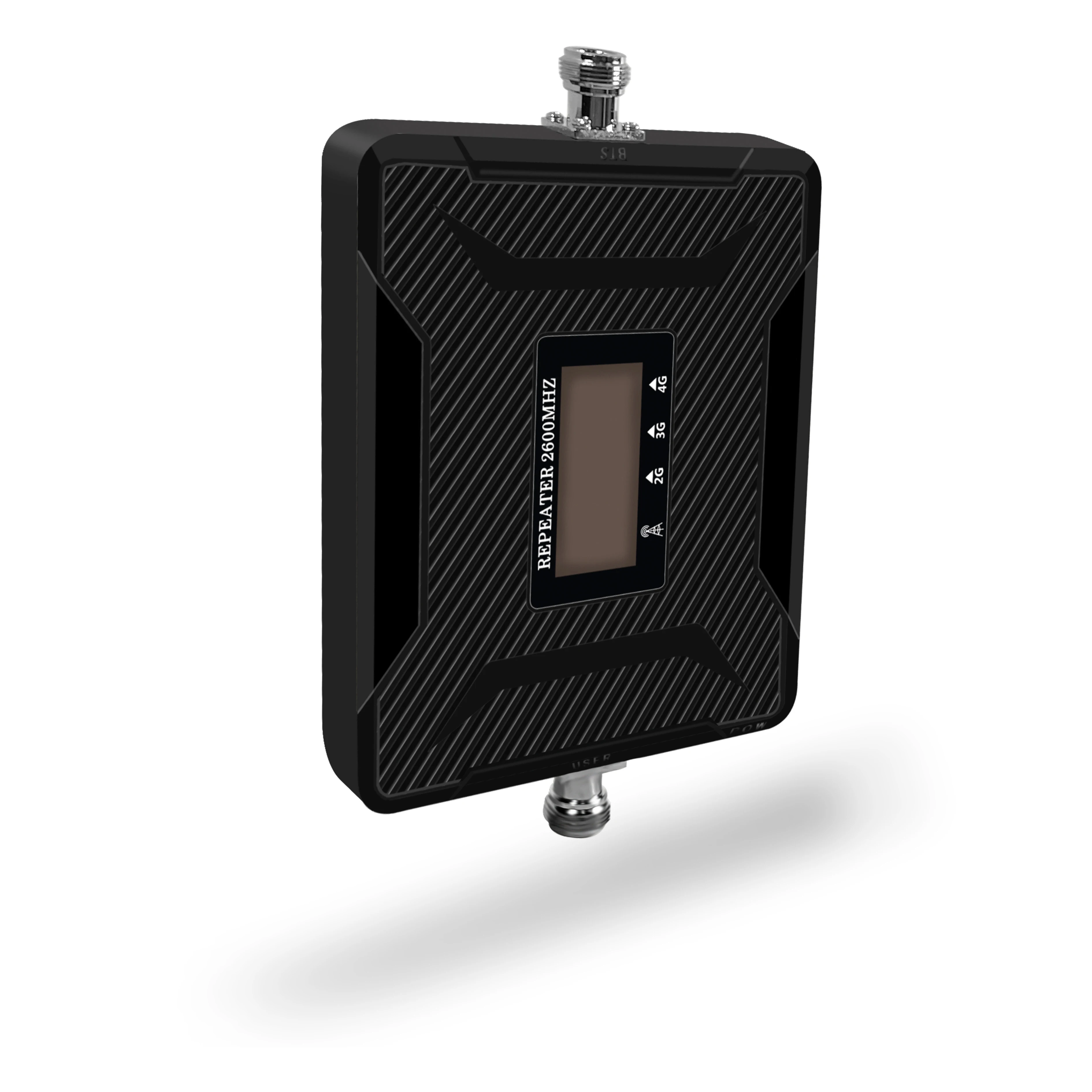

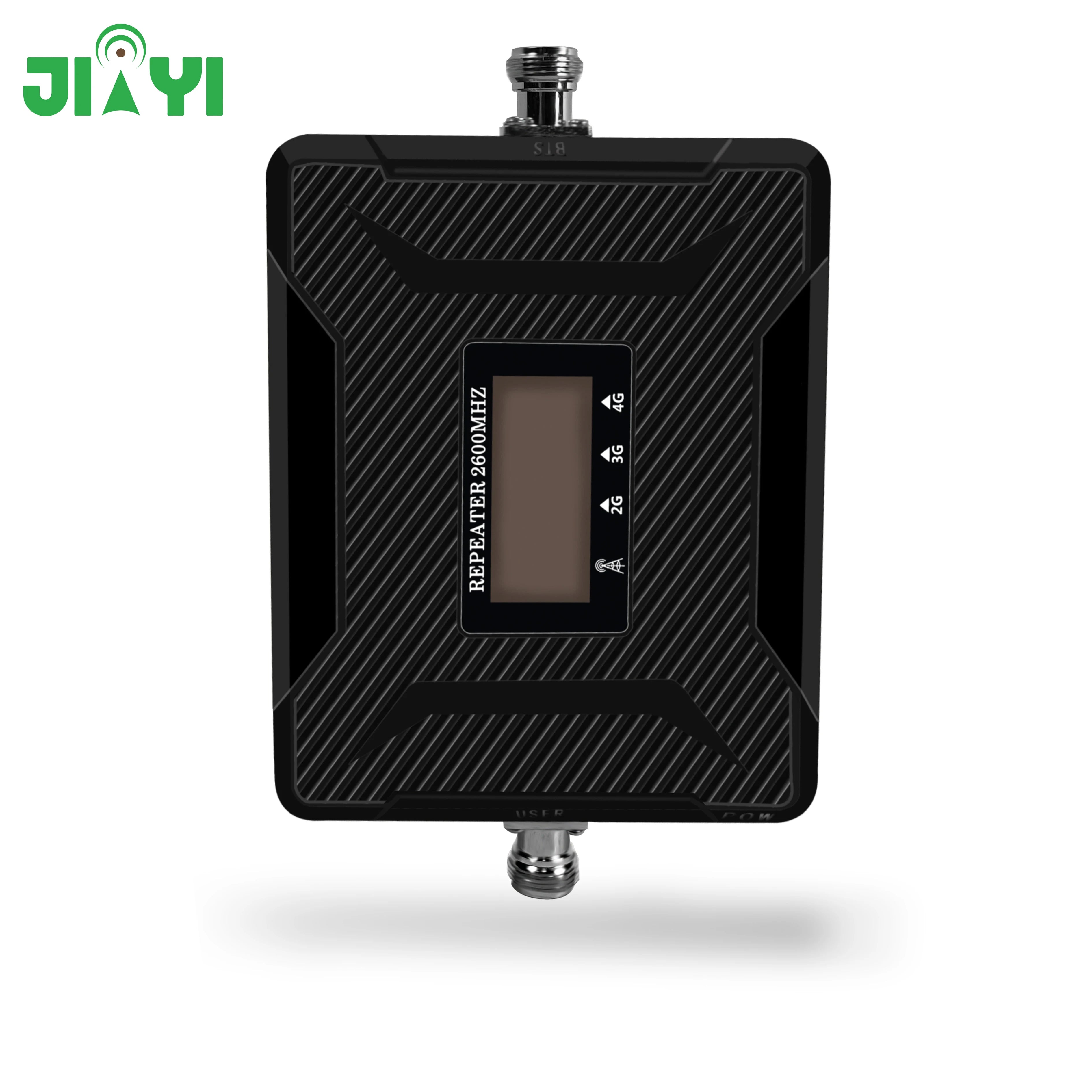

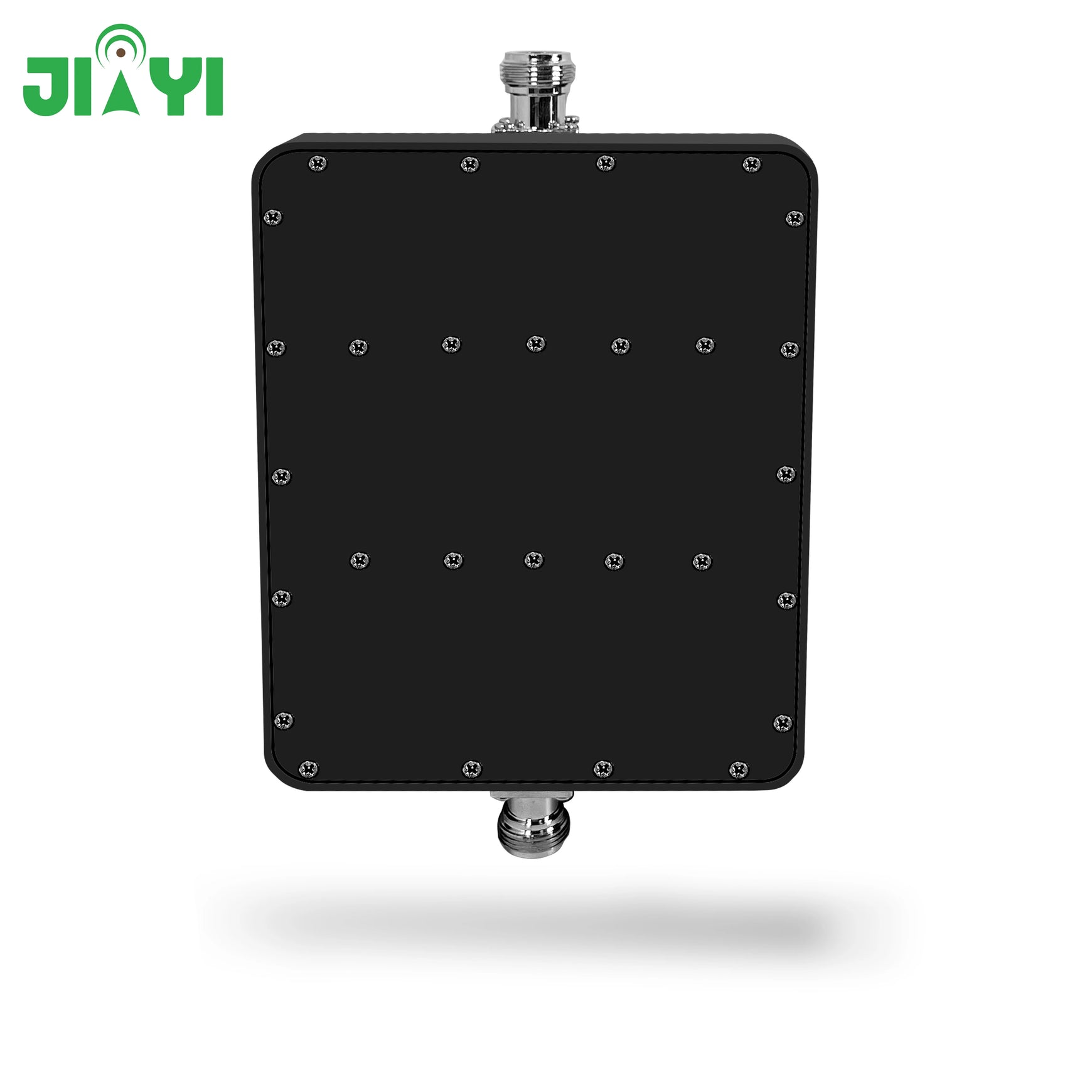

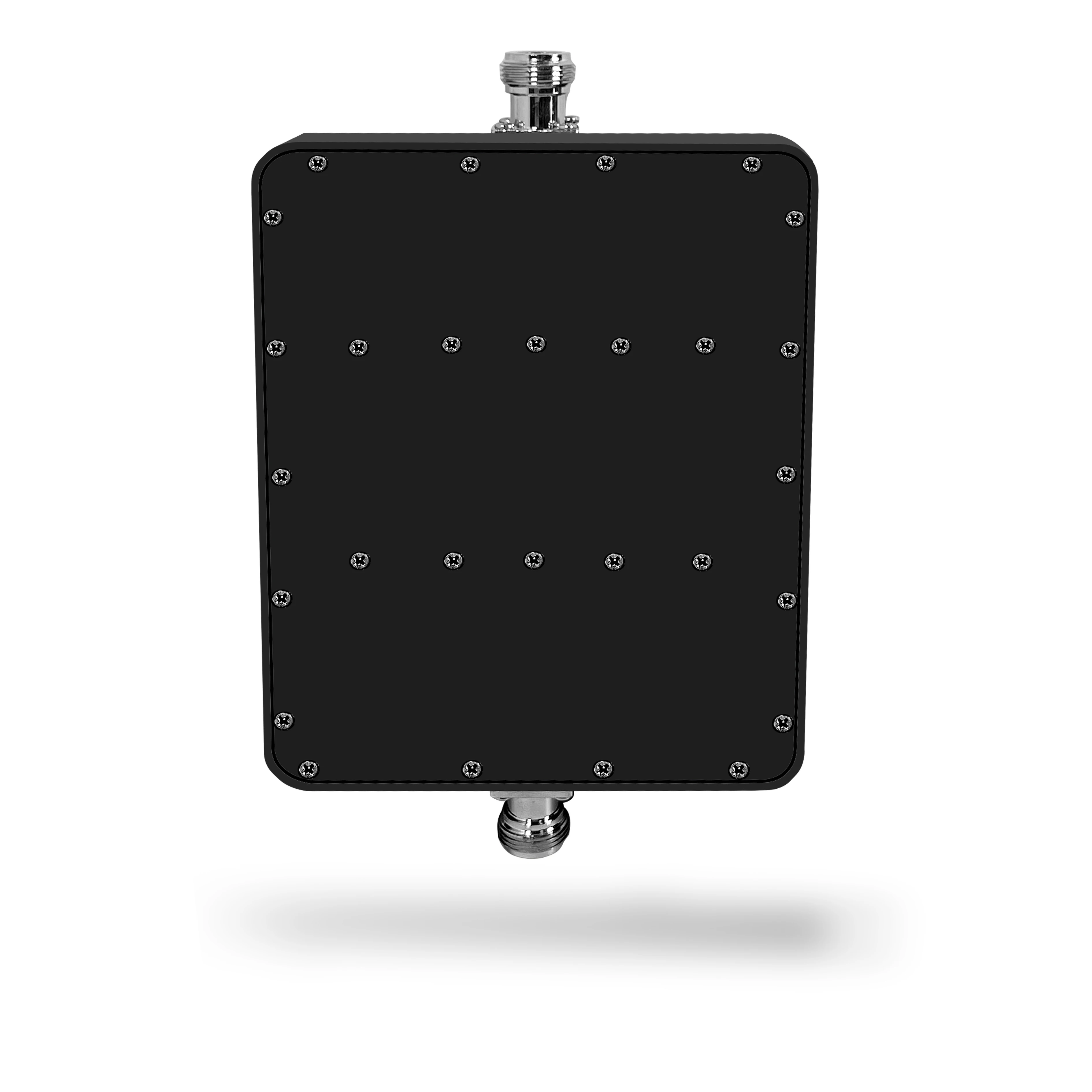

Mobile phone signal booster 700/800/850/900/1800/1700/1900/2100/2600MHZ gsm signal repeater repeater suitable for home

Write a review

Save -49% Rs. 22,414.79 ~~Rs. 43,960.84~~

Brand : Shanvis

Collection : Home&TechAcc Mobiles & Accessories

SKU : 6089687013089_96025879

Availability : 9999 In Stock Sold Out 9999 9999

HURRY ! ONLY 9999 LEFT IN STOCK.

Specification900/1800/2100mhz900/1800/2600mhz

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

For choice, we have high power Gain device, with AGC ALG device...

1.Sample Orders are supported.
2.Fast delivery.We can send the sample in 1days after getting your payment
3.OEM ODM service is available. We can make customized logo,frequency on product and packing
according to your requirement.
4.2 year warranty
5.CE approval

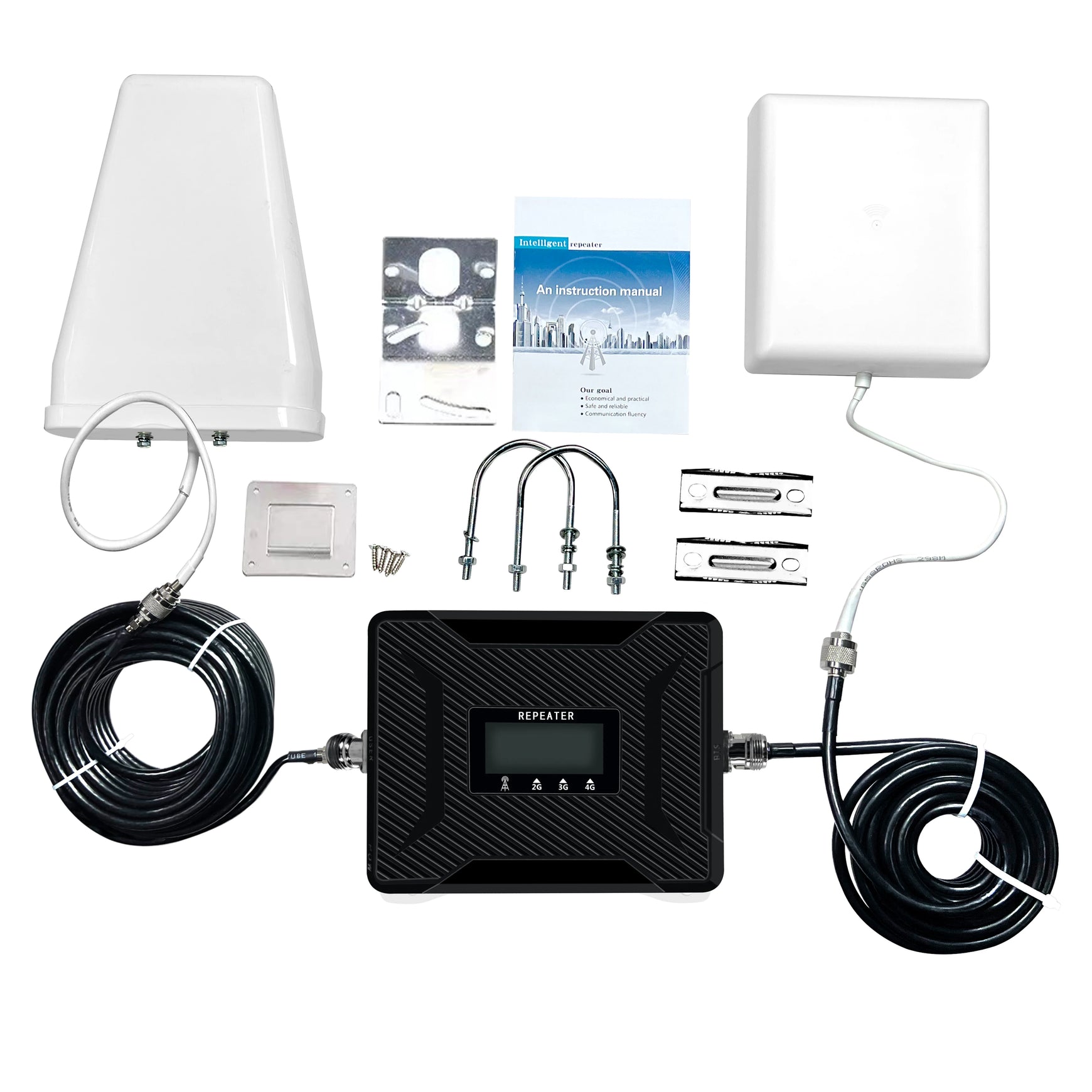

Cell phone signal booster for home indoor gps repeater

To choose from, we have single frequency dual frequency triband frequency quad frequency five frequency device , high power high
gain device, with AGC ALG device...

Single band frequency ：
900,1800,2100,FDD2600,850,800,700,1900,1700,TDD2600,TDD2300 ,TDD1900

Dual band frequency ：
900/1800,900/2100，1800/2600,850/1900,800/1800,850/1700,1800/2100,900/2300,1800/2300,1700/2100

Triband frequency ：
900/1800/2100,850/1800/2100,900/1800/2600,900/2100/2600,1800/2100/2600

Quad band frequency ：
850/900/1800/2100,900/1800/2100/2600,700(B28)/900/1800/2100.

Five band frequency ：
850/900/1800/2100/2600,800/850/900/1800/2100,850/900/1800/1900/2100,800/700/900/1800/2100,900/1800/2100/2300/850.

Specification

单一型号参数/Single System specification
技术参数/Electrical specification			上行/ Uplink	下行/Downlink
频率范围/Frequency Range(MHz）	900MHz	890～915	935～960
		1800MHz	1710～1785	1805～1880
		2100MHz	1920～1980	2110～2170
增益/Gain(dB)			60	65
带内波动/In-band ripple（dB）			WCDMA、GSM≤±3 DCS≤±5
最大输出/Maximum Output Power（dBm）			≥20	≥20
功率/Maximum Input Power（dBm）			≤-20dBm
驻波比/VSWR（dB）			≤2.5
延时/Time delay(uS）			≤1.0us
接头损耗/NF(dB)			≤6dB
杂散发射/spurious emission（dBm）			9KHz～150KHz≤-36dBm@1KHz
				150KHz～30MHz≤-36dBm@10KHz
				30MHz～1GHz≤-36dBm@100KHz
				1GHz～12.7GHz≤-36dBm@1MHz
/电源POWER CONSUMPTION			≤10W
工作温度/Working tempreture(℃)			-25℃～+55℃
连接方式/Connector type			□N/F
电源/Power Supply			AC110-240V---DC+5V～+12V
尺寸/Size（mm)			18011522
重量/Weight（g）			800
